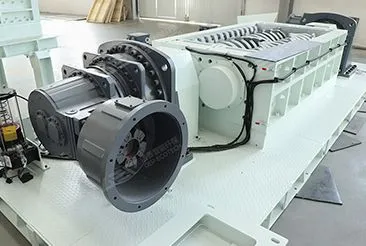

The GD Series Double Shaft Shredder, built on decades of engineering expertise, sets a benchmark in industrial shredding. It handles secure destruction, volume reduction, waste-to-energy and SRF/RDF production. A low-speed, high-torque drive (motor + planetary reducer or hydraulic) and interlocking high-strength cutters reliably process tough metals to soft waste into controlled resources.
Durability is fundamental: hexagonal shafts, anti-winding design and intelligent overload protection ensure reliable long-term performance. After thousands of hours of demanding operation, the GD Series still reduces costs and enhances returns. Whether for primary or secondary shredding, it maintains consistent output and low maintenance. From GDI, GDB, GDL, GDT to GDF, each model serves a specific mission. Whether as a standalone workhorse or as part of a coordinated shredding line, we have the technology. Contact us today to begin designing your custom shredding solution.
Powerful shredding performance, wide adaptability, low energy consumption and low noise.

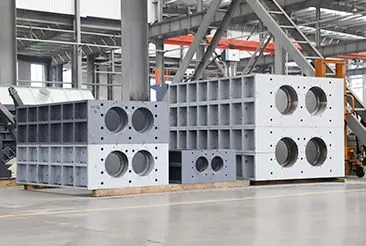

Through multi-stage precision manufacturing and heat treatment, offering outstanding durability, reducing operation cost and extending service life.

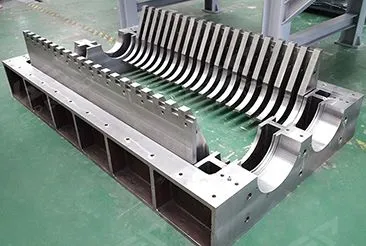

Arc-shaped fixed cutters preventing soft and flexible materials from winding; and independently assembly design enabling easier maintenance.

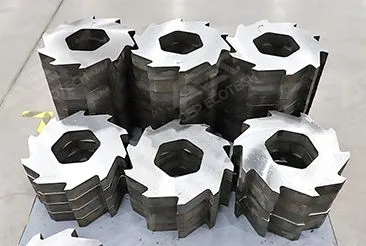

Forged, tempered, and heat-treated from 42CrMo alloy steel, followed by ultrasonic inspection, to ensure superior strength and durability.

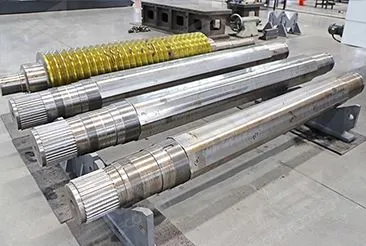

Heat-treated and precision-machined, with high strength and accuracy, ensuring lasting stability and much easier maintenance.

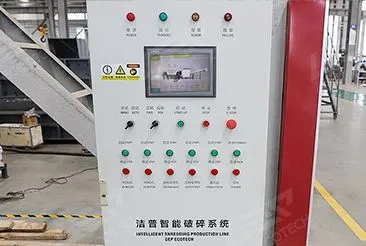

Providing auto reverse, auto lubrication, overload protection and real-time monitoring, significantly boosting efficiency and preventing downtime.

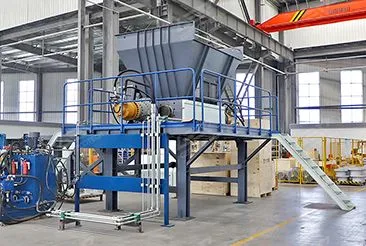

Offering a choice between hydraulic drive for superior versatility and electric drive for high-torque precision.
Model | Power (kW) | Discharge Size (mm) | Capacity (t/h) | Overall Dimensions (mm) |
GD3 | 7.5–11 | 20–100 | 0.2–0.3 | 1720×800×1320 |
GD5 | 18.5–22 | 30–150 | 1–2 | 2570×1260×1570 |
GD5P | 18.5–30 | 1.5–3 | 3090×1260×2180 | |
GD6 | 70–90 | 40–200 | 3–6 | 3840×2380×3060 |
GD8 | 90–110 | 4–8 | 4600×2620×3380 | |
GD9 | 150–270 | 50–300 | 8–16 | 5310×2730×3800 |
GD10 | 150–270 | 10–20 | 6000×2780×3800 | |
GD12 | 220–320 | 15–30 | 6000×3420×4110 | |
GD13 | 220–400 | 20–40 | 6200×3600×4110 | |
GD15 | 400–630 | 25–50 | 6960×3990×4900 |
Note: Technical specifications may change without notice due to ongoing technological advancements.
