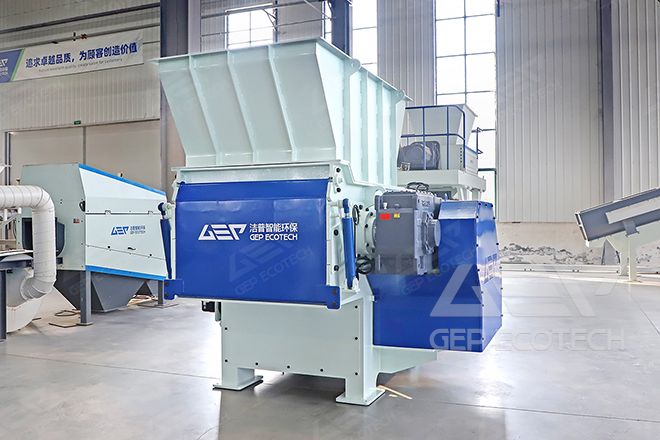

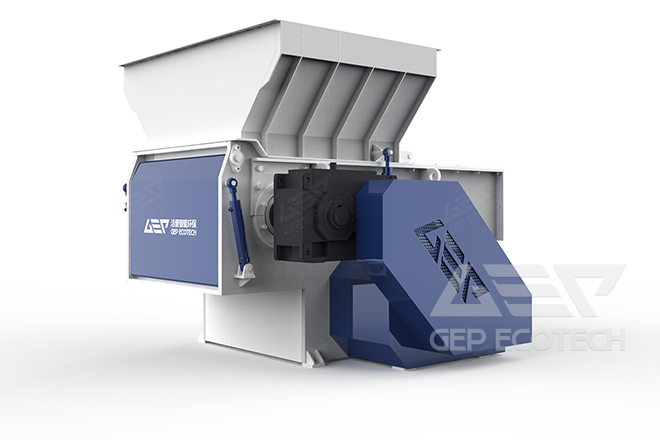

Single Rotor Fine Shredder

Single Rotor Fine Shredder

The GSS series single rotor shredder is suitable for processing a wide range of materials to a small and uniform size, with a maximum capacity of around 1 - 10 tons per hour and a discharge size of 30 to 100 mm, depending on the model of the machine, the type of material, the size of the screen and the field of application.

Live Chat Message

Overview

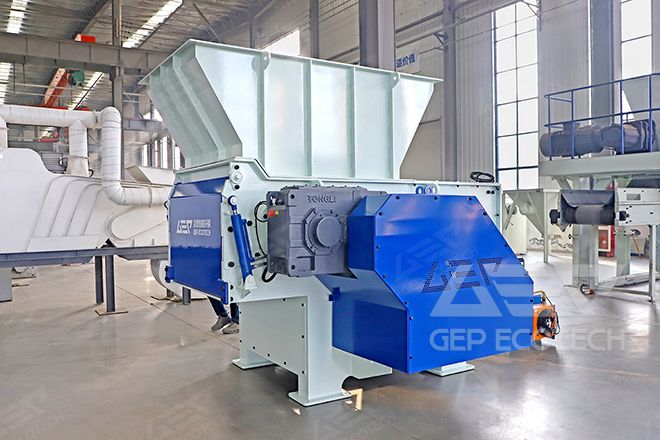

The GSS single rotor shredder is a versatile machine suitable for recycling operations in production of valuable secondary raw materials. By adjusting the rotor speed and screen size, the final discharge size can be controlled and is suitable for the treatment of municipal solid waste, the production of fuel derived from waste, etc.

GEP Ecotech's single rotor fine shredders are reliable and efficient recycling machines, particularly suitable for a wide range of solid waste fine shredding applications. The adjustable rotor speed ensures optimum performance depending on the material, and the pusher ensures automatic and smooth material entry, guaranteeing output and stability.

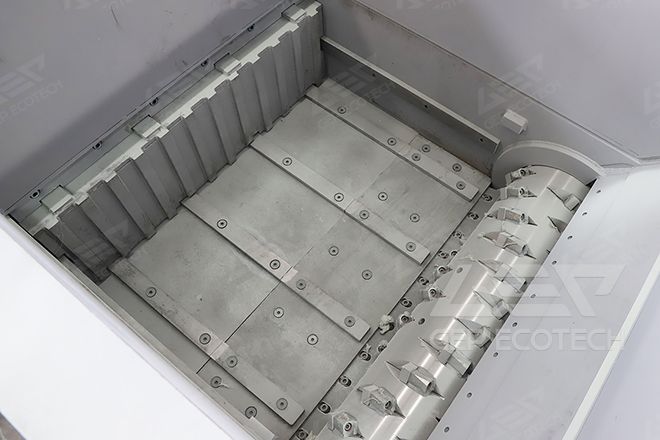

The motor drives the cutter shaft to drive the rapid rotation of the cutter, the material entering the shredding chamber is pushed by the feeder to the middle of the movable cutter shaft and the fixed cutters, the cutters on the shaft and the fixed cutters cooperate to shear and tear the material for shredding, the unqualified material is brought back to the shredding area by the cutters for further shredding, the material reaching the size of the discharge falls from the screen to achieve the purpose of shredding. The size of the cutters and the size of the screen holes are selected according to the user's requirements.

Features

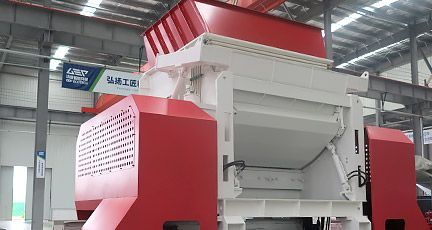

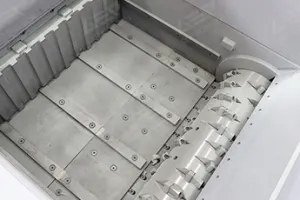

  • Adopt the inclined type pusher

    Adopt the inclined type pusher, pushing material fast frequency, reduce no-load loss.

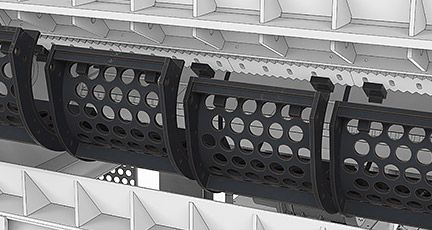

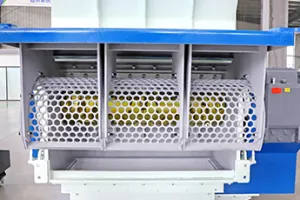

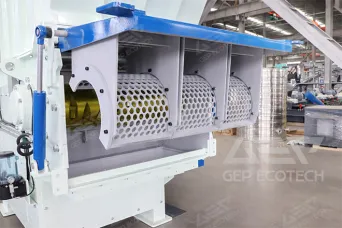

  •  screen and screen bracket

    The screen and screen bracket adopt combined structure; the screen mesh is easy to replace and the cost is low.

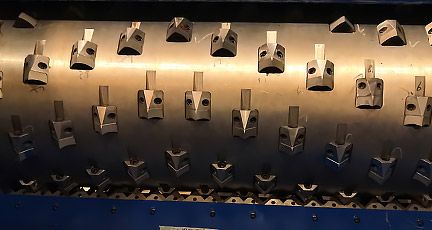

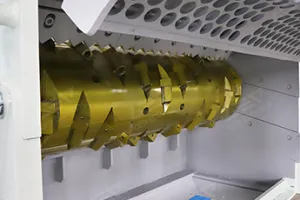

  • movable cutter

    The movable cutter seat and cutter grain are bolted, easy to disassemble and install, high maintenance efficiency.

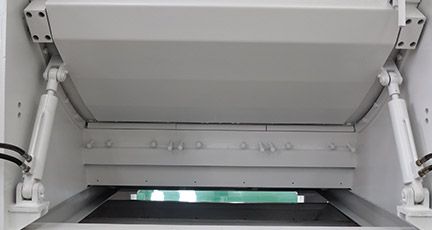

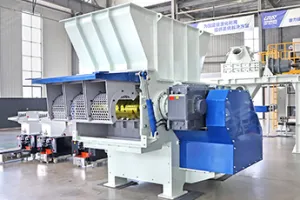

  • hydraulically driven opening and closing

    hydraulically driven opening and closing of the access door and screen, reducing the difficulty of access and maintenance.

Technical Specifications

ModelCapacity (t/h)Output size (mm)Dimension (mm)
GSS120.5-330-1203000×2000×3000
GSS151-83600×2000×3000
GSS203-153800×2000×3000
GSS308-205600×2200×3300

Note: Technical specifications may change without notice due to ongoing technological advancements.
