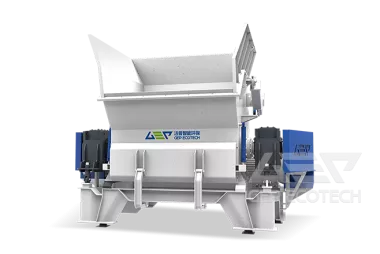

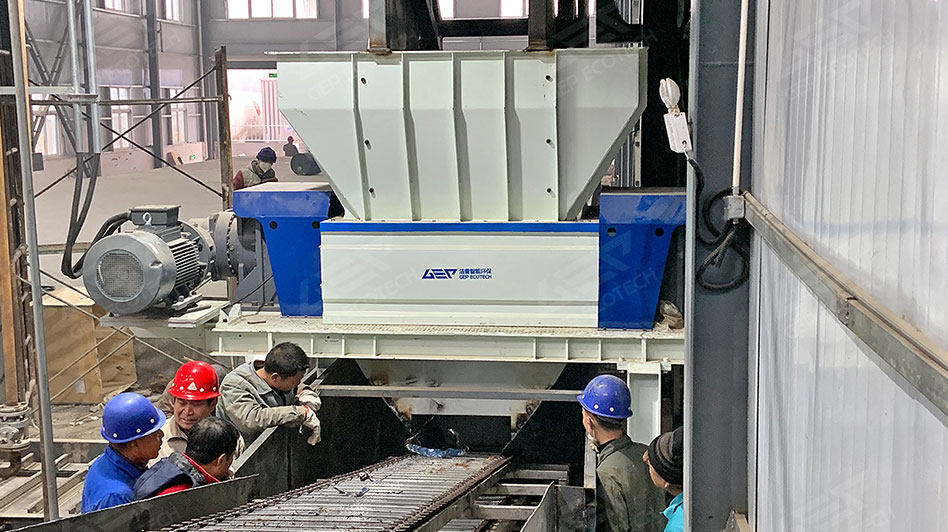

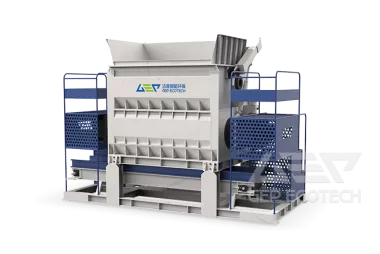

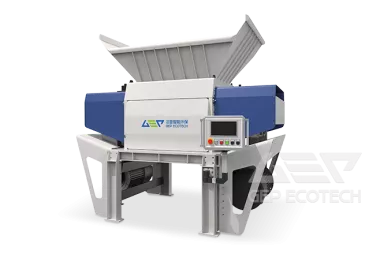

The GS Series Single-Shaft Shredder is engineered for precise, fine shredding of plastic, paper, textile and complex municipal and industrial solid waste. Its powerful cutting system uses V-shaped movable cutters and fixed cutters to create continuous shearing action, efficiently processing materials in a single pass to meet strict size requirements. This design ensures consistent output, high throughput and reduced energy consumption, even for challenging materials.
Built with precision cutter boxes, high-strength main shafts, wear-resistant cutters, multi-stage sealed bearings and hydraulic one-touch screen opening, it delivers durability, safety and significantly reduced downtime. The GSS, GSD and GSE3 series offer tailored configurations for brittle to tough materials, integrating seamlessly into complete recycling lines with sorting and separation equipment, to create a cohesive, high-efficiency system. Ready to optimize your size reduction process? Contact us for your ideal shredding solution.
Single-shaft high-speed cutting with hydraulic pushing greatly improves working efficiency.
Square, reversible high alloy cutters offer four usable edges, maximizing service life and cost-efficiency.
Hydraulic one-touch opening for easy screen interchange, enables quick maintenance and precise size control.
The intelligent control system that automates operations, boosts efficiency and prevents unplanned downtime, reducing operating costs.
Compact multi-system integration delivers full functionality and highly efficient performance.
Hydraulic-assisted operation automatically saves effort and boosts overall working efficiency.
| Model | Power (kW) | Discharge Size (mm) | Capacity (t/h) | Overall Dimensions (mm) |
| GSS8 | 37–45 | 30–100 | 0.3–1.5 | 1800×2800×2400 |
| GSS12 | 55 | 0.5–2.5 | 2500×2800×2400 | |
| GSS15 | 75–90 | 1–5 | 2880×3700×2600 | |
| GSS20 | 110 | 2–6 | 4200×3700×2600 | |
| GSE15 | 90–110 | 1–5 | 3720×2280×3610 | |
| GSE20 | 150–180 | 2–6 | 4720×2280×3610 | |
| GSE30 | 220–270 | 4–15 | 5720×2600×3930 | |
| GSE320 | 320–400 | 4–15 | 6270×3420×5600 | |
| GSE330 | 400–500 | 5–20 | 7000×3420×5600 |
Note: Technical specifications may change without notice due to ongoing technological advancements.
Capacity: 20–40 m³/Hour
Capacity: 20–40 m³/Hour
Capacity: 15 Tons/Hour
Capacity: 5–8 Tons/Hour
