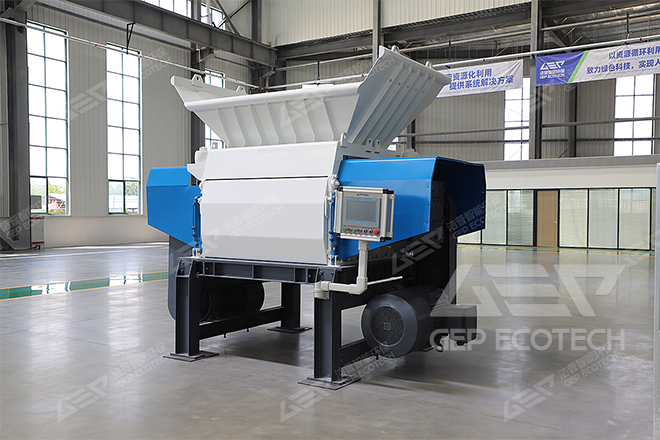

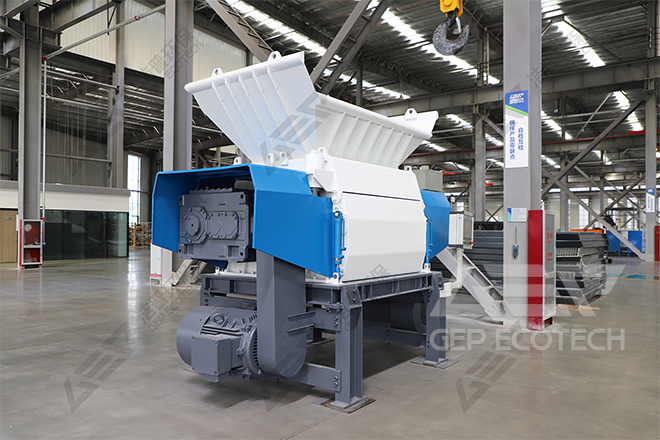

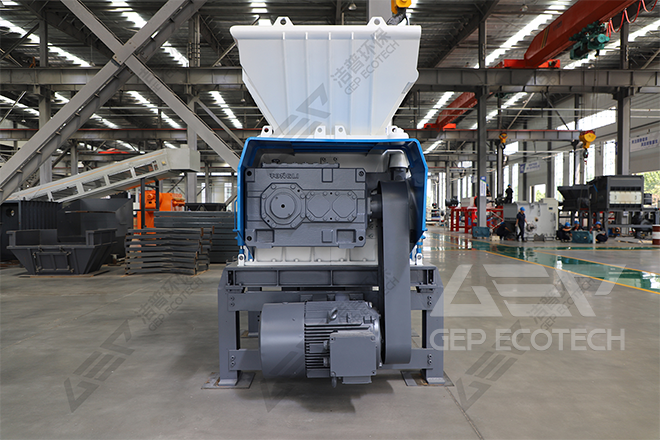

The GSD Series Double Rotor Fine Shredder is designed to cope with the more complex and severe task of fine shredding of waste. It can handle a variety of large volume solid raw materials such as rolls of plastic, bundles of waste paper, piles of fabric. The two rotors of the shredder are independently driven and turn in opposite directions, feeding each other for multiple shredding and effectively improving shredding efficiency.
The GSD fine shredder is a powerful high-standard fine shredder that can quickly shred materials to the required shape and size. It uses dual rotors to shred materials, which is more efficient and has a larger production capacity.

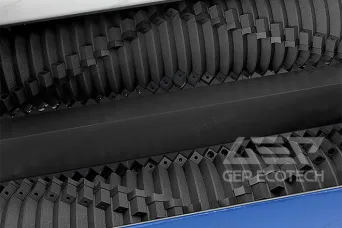

Independent drive of double rotors, mutual feeding, multiple shredding, high shredding efficiency.

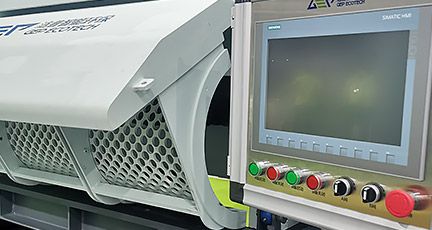

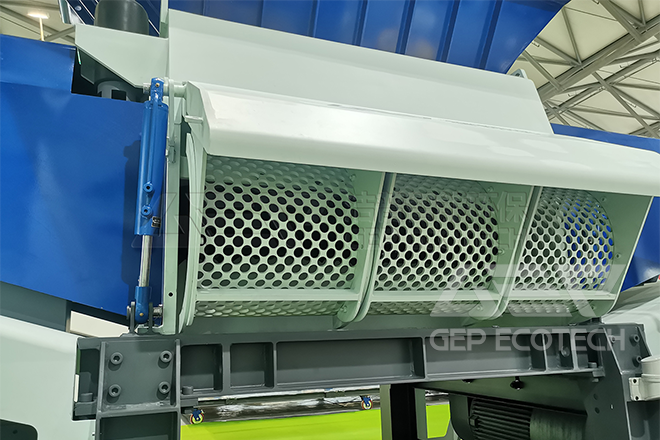

Integrated design of discharge screen and access door, hydraulic one-touch opening, with easy maintenance.

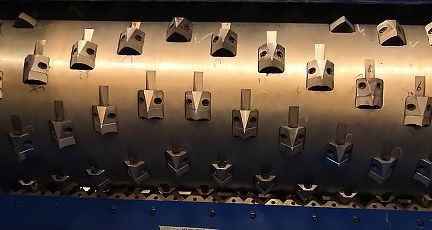

Cutters are bolted to the cutter base, which is welded to the rotor, easy to change the cutters.

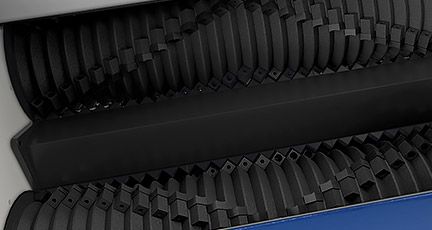

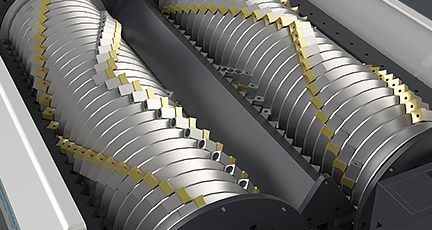

The movable cutter assemblies (cutter particles, cutter base) are arranged in a V-shape on the rotor, reducing the feeding resistance when shredding materials.
| Model | Capacity (t/h) | Output Size (mm) | Dimension (mm) |
| GSD12 | 1–6 | 30–100 | 3000×2800×3000 |
| GSD15 | 3–15 | 3600×2800×3000 | |
| GSD20 | 8–25 | 4200×3000×3200 |
Note: Technical specifications may change without notice due to ongoing technological advancements.
