Waste tires are no longer a disposal problem—they are a business opportunity. They can be converted into Tire-Derived Fuel (TDF) for cement plants, crumb rubber for playgrounds, or feedstock for pyrolysis. But all recycling starts with size reduction. So, a common question arises: What is the price of a 1TPH tire shredder?
The answer varies. The cost depends on the tires you process and what you want to produce. Whether you need a single machine or a complete recycling line, understanding these factors is key.
Factors Influencing the Price of a Tire Recycling System
Tire Type and Size
The dimensions of the tires you plan to process are the primary cost driver. A system designed for passenger car tires is very different from one built to handle massive OTR (Off-The-Road) tires.
Passenger & Light Truck Tires (Diameter <800mm): These can typically be fed directly into a dual-shaft shredder, simplifying the process and reducing initial equipment costs.
Truck and Bus Tires (Diameter 800-1200mm): These tougher tires often require pre-treatment. They usually need to pass through a Tyre Debeader to remove the thick steel bead wires before entering the primary shredder. This adds an essential piece of equipment to the line.
OTR Tires (Diameter 1200-1800mm): Processing these giants necessitates heavy-duty machinery. The first step is using a specialized Tire Bead Separator to cut out the entire reinforced bead ring. Only then can the remaining tread be fed into a powerful shredder. Naturally, a system capable of handling OTR tires will be significantly more expensive than a standard 1TPH setup for car tires.
Desired Output Size and Quality
What do you want to produce? The level of processing dictates the machinery required. This is where a single machine often evolves into a full system.
Tire Chips (50-100mm): Producing coarse tire chips for TDF or landfill projects requires primarily a primary shredder. This is the most economical entry point.
Medium Rubber Chips (10-20mm): To achieve a cleaner product for uses like equestrian surfaces or playground base layers, you need secondary processing. This typically involves adding a secondary shredder to the line to further reduce the material and liberate more steel.
Rubber Granules / Rubber Powder (1-5mm / <1mm): Producing high-value crumb rubber for new products, asphalt modification, or sports surfaces requires a complete system. This includes a primary shredder followed by a Rubber Grinding Unit and sophisticated screening and fiber separation equipment. This significantly raises the overall investment but also maximizes the potential profit from the end products.
Level of Automation
A profitable recycling line requires efficient material handling. The choice between manual labor and automated conveyors affects both the upfront price and long-term operating costs. A system integrated with inclined belt conveyors and steel plate conveyors for feeding, and additional conveyors for output, will have a higher initial price tag but will drastically reduce labor costs and increase throughput consistency over time.
GEP ECOTECH's Complete Tire Recycling Solutions
At GEP ECOTECH, we understand that one size does not fit all. We offer a comprehensive range of machinery and complete tire recycling systems tailored to different budgets and application requirements. Whether you need a single efficient machine or a fully automated processing plant, we have the solution.

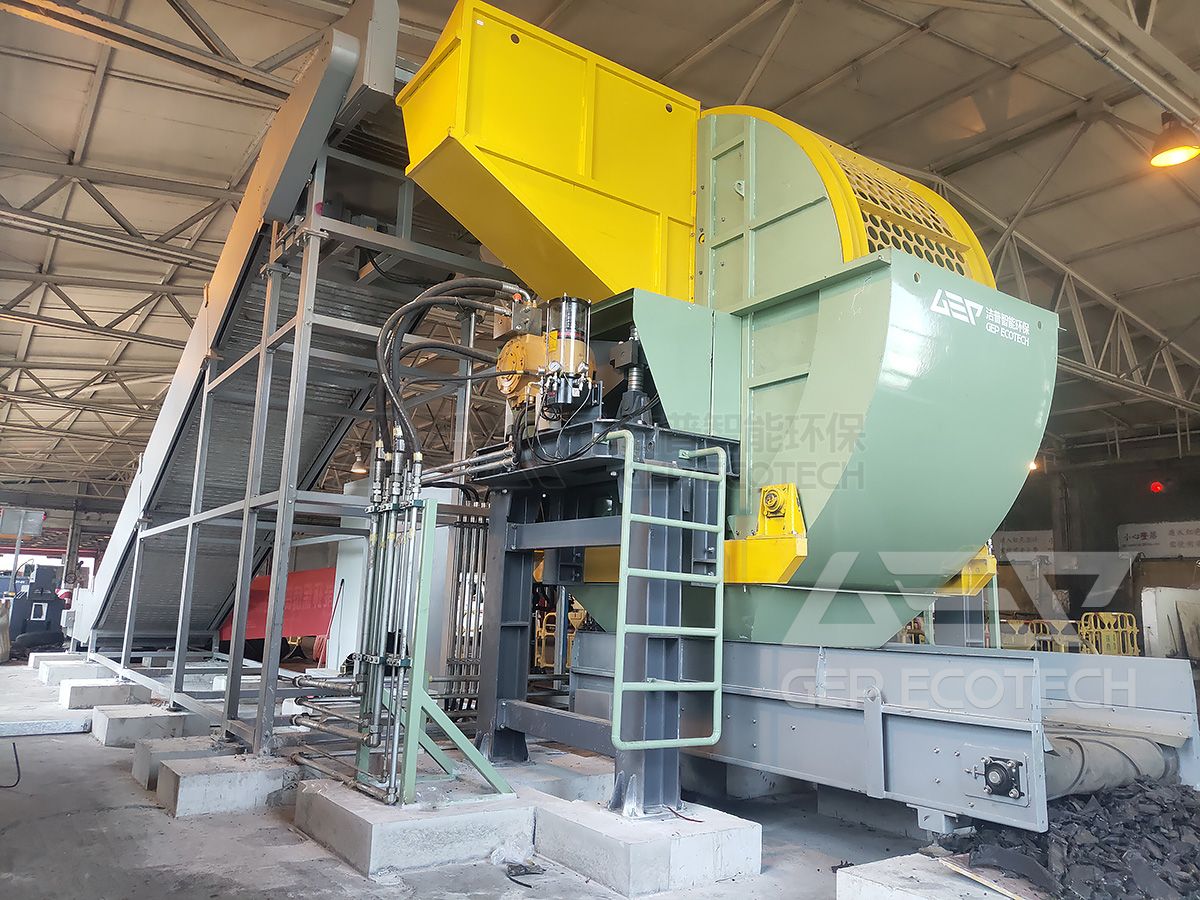

Dual-Shaft Tire Shredder (with Integrated Trommel)
Our high-torque, low-speed shredders are the workhorses of the industry. They deliver high throughput and consistent output sizes (around 50mm), making them ideal for producing high-quality TDF for the cement, steel, and power industries. Integrated trommel options ensure a precise final product.

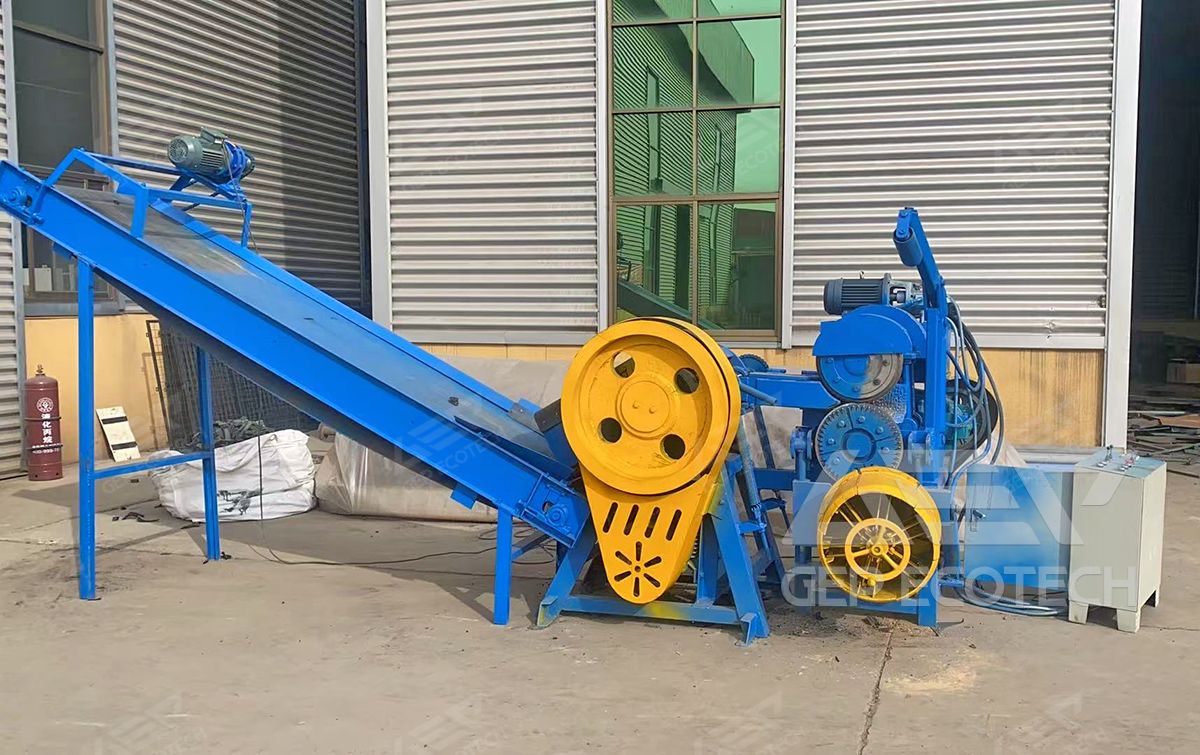

Integrated Tyre Cutting Machine
This is an economical and efficient solution for small to medium investors. It cuts tires into strips, rings, and finally blocks (50-100mm) in one integrated process, offering a simple way to produce coarse rubber chunks without a complex line.

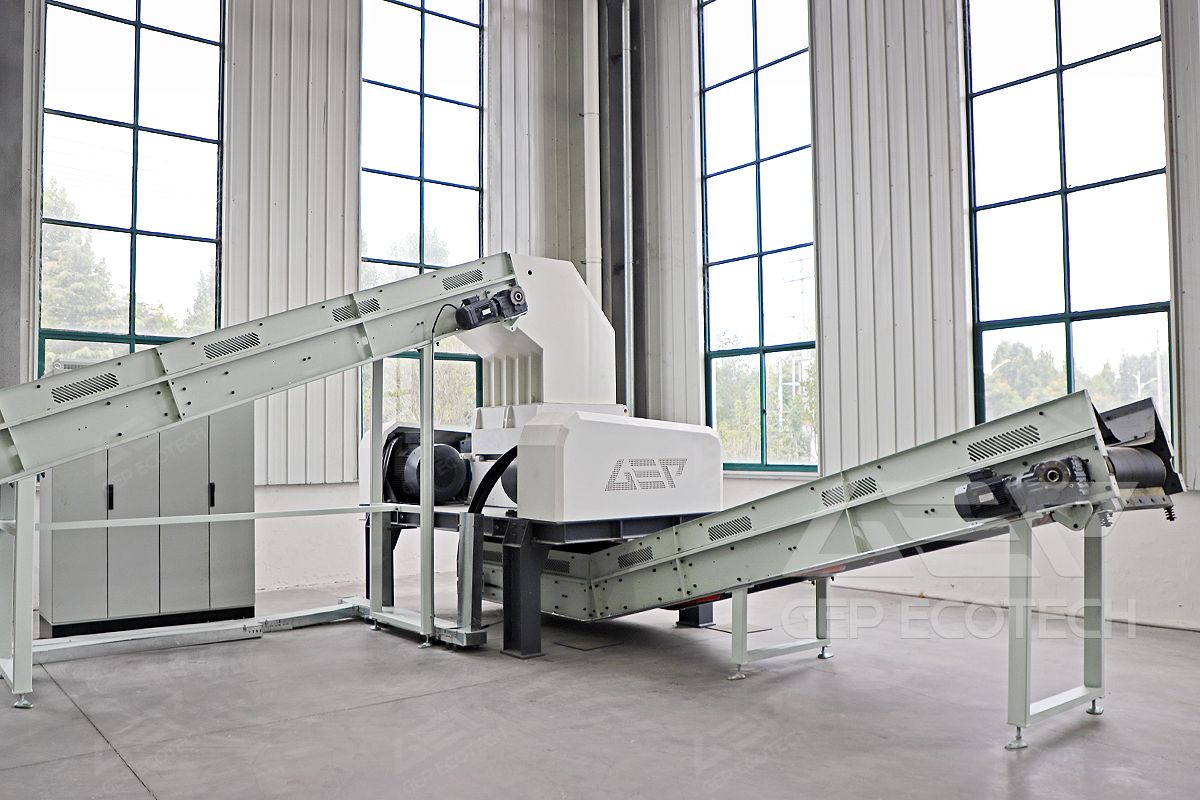

Tyre Rasper
This machine is the perfect next step after primary shredding. It excels at further tearing the rubber and separating the steel wire, producing 10-20mm granules ideal for lightweight fill or as a base material for further grinding.

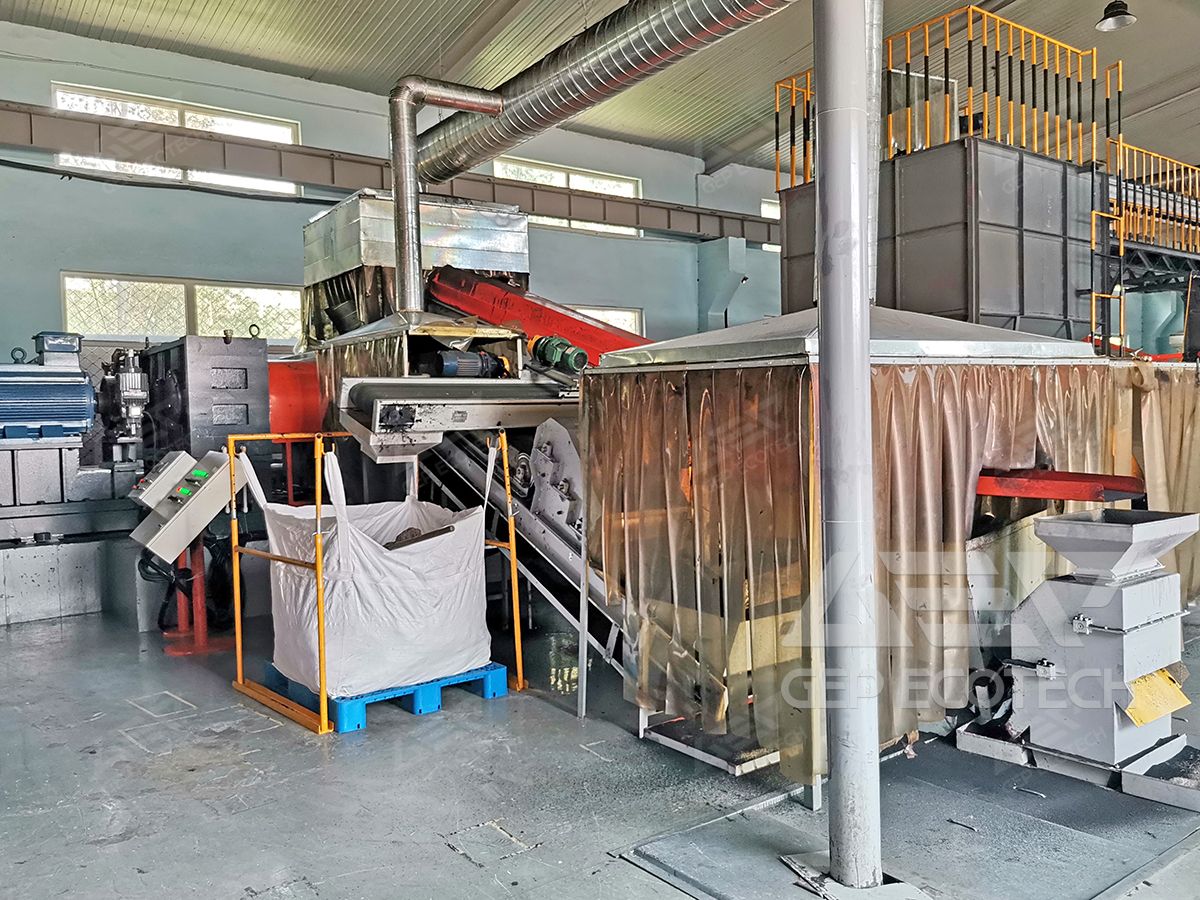

Rubber Grinding Unit
For those aiming for the high-value end of the market, our grinding units can refine tire chips into fine rubber powder (up to 30 mesh). This premium product is in high demand for manufacturing new rubber goods, running tracks, and sports fields.
Investing in tire recycling is a significant decision. The price of a 1TPH system is not just about the machinery; it's about the value of the entire solution. Whether you are starting a small business with a single machine or expanding an industrial operation with a fully integrated line, GEP ECOTECH has the expertise to design, supply, and support the perfect system for your specific needs and budget.
Contact GEP ECOTECH today to discuss your project and receive a customized quotation.
