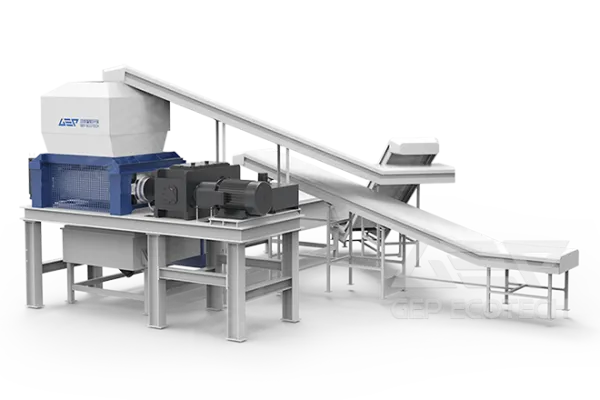

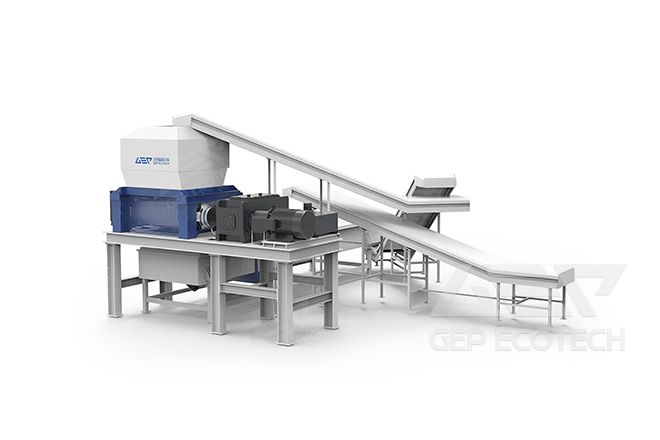

Rubber Grinding Unit GPT Series

Overview

Designed for efficiency and reliability, the rubber grinding unit delivers uniform feeding, accurate particle sizing, and effective removal of ferrous impurities. The enclosed conveying system reduces dust and improves operational safety, while the modular design allows flexible integration into existing recycling lines.

By converting waste rubber into standardized, reusable materials such as rubber granules, rubber powder and reclaimed rubber pellets, the Rubber Grinding Unit supports sustainable recycling practices and circular resource utilization, helping recyclers achieve both environmental and economic value.

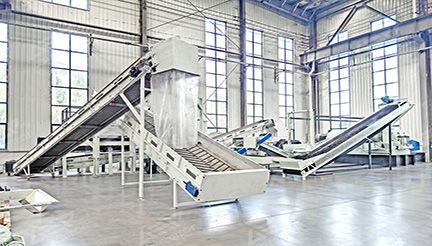

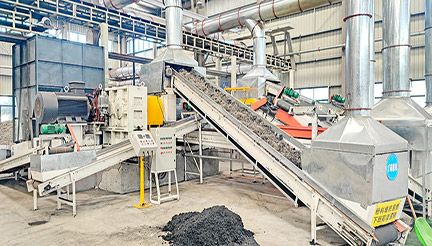

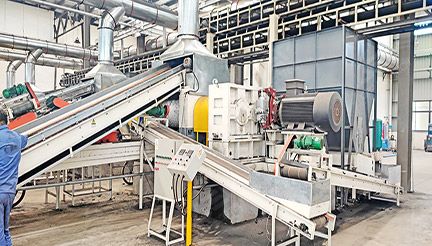

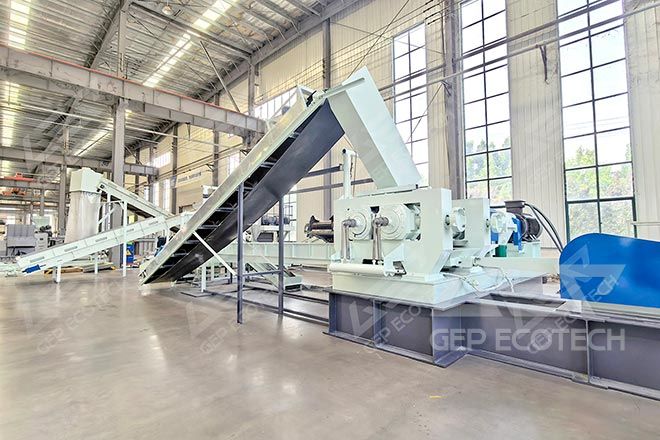

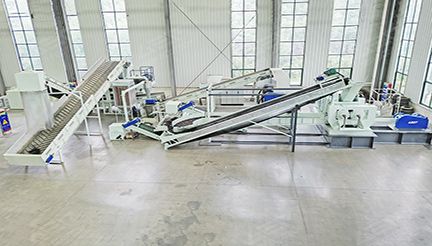

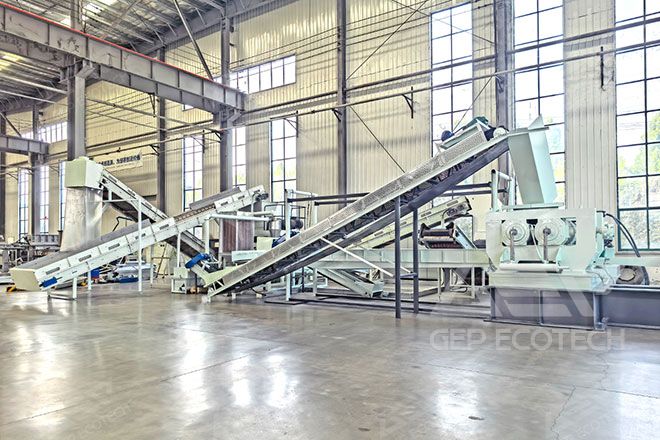

Gallery

Features

The rubber grinding unit integrates grinding, screening, magnetic separation, and conveying into a compact system, enabling continuous and stable rubber size reduction while ensuring clean and consistent output.
It features fully automated operation from feeding to discharge, eliminating manual intervention in key processes. It realizes intelligent monitoring of equipment status and real-time adjustment of working parameters, ensuring consistent production quality and reducing labor costs significantly.
Equipped with a dual-screen single-return vibrating screen, the system accurately controls particle size and automatically returns oversize material for further grinding, improving efficiency and product uniformity.
Multi-stage magnetic separators effectively remove steel wires and ferrous impurities from rubber materials, enhancing rubber purity and protecting downstream processing equipment.
Key components are manufactured from high-strength materials and precision-processed to withstand long-term heavy-duty operation, reducing maintenance frequency and ensuring reliable performance.

Technical Specifications

Model	Feeding Size（mm）	Power（kW）	Capacity（t/h）	Dimensions（mm）
GPT860	50×50	132	0.5–1	5300×1900×1600
GPT980	50×50	200	1–1.5	5400×2000×1650
GPT1100	50×50	280	2	6000×2200×1800
GPT1200	50×50	355	3–5	6000×2200×1800
