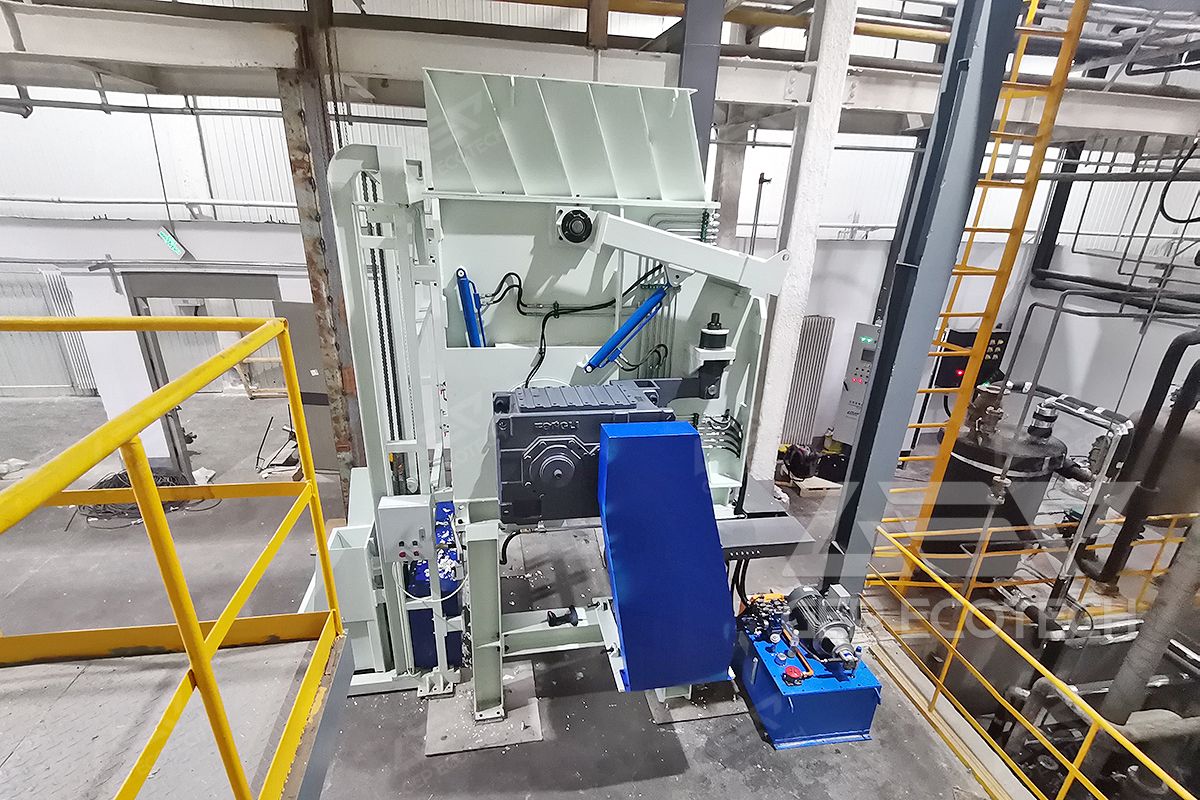

Single-shaft shredder has been widely used in general industrial solid waste disposal. It can effectively process flexible materials such as waste spinning, leather, waste paper, plastics, and wood, reduce the volume of materials, and facilitate further recycling at the back end.
Single-shaft shredder working principle
Single-shaft shredder is the use of movable cutter and fixed cutter interaction, the material for shredding, cutting, extrusion processing to smaller particle size, and through the screen to control the discharge particle size. The motor drives the rotor through the reducer to drive the tool to rotate rapidly, and the material entering the crushing chamber is pushed by the feeder to the middle of the moving knife and the fixed knife. The knife grain on the knife shaft and the fixed knife work together to cut and tear the material to break, and the material larger than the screen aperture is brought back to the crushing area by the passive knife, and the material with the discharge particle size falls from the screen to achieve the purpose of crushing.
Single shaft shredder characteristic
- The pusher pushes the material fast, reduces the no-load loss, and further improves the crushing efficiency.
- The knife holder and knife grain are fixed by bolts, which is convenient and fast when disassembling, improves maintenance efficiency and saves labor cost.
- The screen and screen bracket in the blanking screen assembly adopt a combined structure, and only need to replace the screen mesh when replacing it, and the replacement cost is low. The screen assembly supports hydraulic one-button opening to achieve convenient maintenance of the rotor, reducing manual maintenance time and cost, and improving production efficiency.
- Crusher modular design, the whole machine integrated power system, crushing system, hydraulic feeding system, fast discharge system, intelligent protection system, comprehensive functions, small footprint.
GEP ECOTECH single-shaft shredder is a kind of high efficiency and practical mechanical equipment. We have been deeply engaged in industrial solid waste disposal industry for more than ten years, providing professional solutions for general industrial solid waste and promoting sustainable development of the industry. Welcome to inquire!
