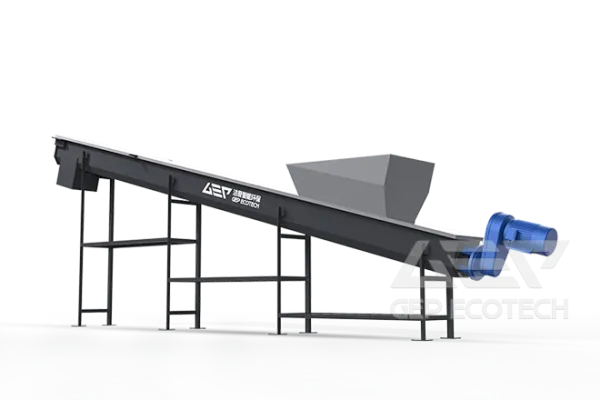

Shaftless Screw Conveyor

The GSC series shaftless screw conveyor is a device that transports materials without a central shaft relying on the rotation of the screw body. It can not only transport light, soft, small, and banded floating materials, but also separate solid and water, and press dirt. It is suitable for continuous and uniform transportation of loose, sticky, and easily entangled materials.

Live Chat Message

Overview

The shaftless screw conveyor is composed of the shell, screw blades, material inlet and outlet, and driving device. It is a widely used conveying equipment in the mining, food, chemical, construction, and solid waste recycling industries.

The shaftless screw conveyor is driven by the electric motor to operate a cycloidal reducer, relying on the mechanical seal shaft and the connecting plate on the shaftless screw body to drive and rotate the screw. After the material is discharged to the feeding inlet, the sludge is discharged from the material outlet through a screw drive.

Features

The screw is wear-resistant and durable, with a long service life.
No central shaft interference, strong anti-winding ability, and special advantages for conveying banded and easily entangled materials to prevent accidents caused by blockage.
The use of fully enclosed conveying and easy to clean screw surfaces can protect environmental hygiene, and the transported materials are not contaminated or leaked.
It can operate at lower speeds, with low energy consumption, high torque, and smooth transmission.
Large conveying capacity, can be installed in multi-stage series according to customer needs, and can transport materials over long distances.
Compact structure, energy-saving and durable, with minimal maintenance.
