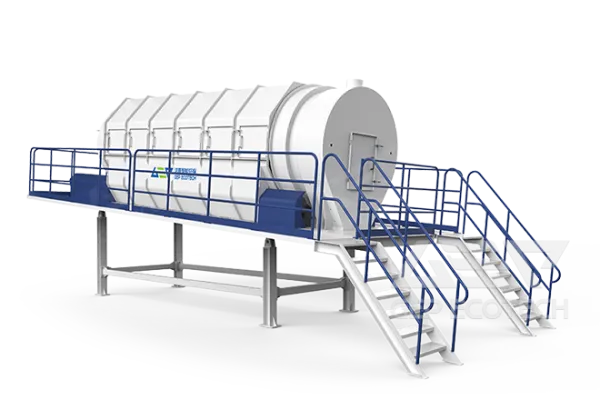

Rotary Drum Screen

Rotary Drum Screen

GTS series rotary drum screen is a kind of screening equipment for screening according to the particle size of the material, mainly composed of motor, reducer, drum device, frame, sealing cover, inlet and outlet, etc. The overall structure is sturdy, high permeability, the screen holes are not easily blocked and the screening effect is good. The system as a whole adopts an effective fully sealed structure and is equipped with an interface to the dust and deodorization system, which does not raise dust and does not pollute the environment.

Live Chat Message

Overview

The rotary drum screen is mostly used for urban domestic waste, landfill waste, industrial solid waste, construction waste, but also for mining, power plants, building materials, metallurgy and other industries.

The electric motor is connected to the drum unit by a coupling through a reducer, driving the drum device to rotate around its axis. When the material enters the drum device, the material on the screen surface is turned and rolled due to the inclination and rotation of the drum device, so that the smaller material (the product under the screen) is discharged through the screen mesh of the outer circle of the drum and the oversize material (the product on the screen) is discharged through the end of the drum.

Features

  • The rolling conveying principle is adopted, with small friction coefficient, light wear, and screen holes are not easy to block.

  • The roller support adopts an integral shaft structure, ensuring stable and reliable operation and high screening efficiency.

  • Fully sealed structure, equipped with connection interface with dust removal and deodorization system, so as to avoid dust and pollution.

  • Deceleration drive is adopted, with high transmission efficiency, small power and energy saving.

Technical Specifications

ModelSpecificationDiameterRotating speed (rpm)Power (kW)
GTS1230Φ1.2×3Φ120012-174-5.5
GTS1530Φ1.5×3Φ150012-175.5-11
GTS1550Φ1.5×5Φ150012-1711-15
GTS1850Φ1.8×5Φ180010-1511-18.5
GTS2060Φ2.0×6Φ200010-1518.5-22
GTS2580Φ2.5×8Φ250010-1522-38

Note: Technical specifications may change without notice due to ongoing technological advancements.
