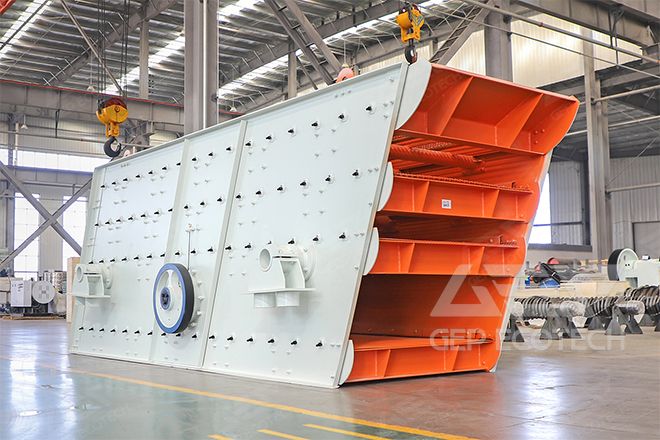

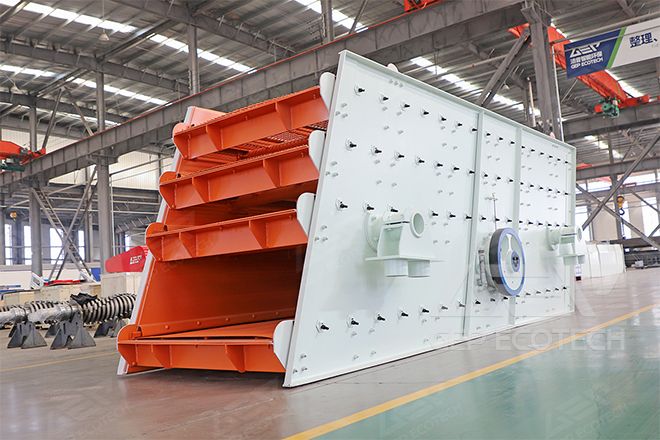

Circular vibrating screen is a multi-layer, circular motion vibrating screen, mainly composed of screen box, screen, vibrator, vibration damping spring device, bottom frame, etc. The side plate of the screening machine is made of high quality steel plate, the side plate is connected with the cross beam and the base of the vibrator by high strength bolts or ring groove rivets, and the amplitude is adjusted by the cylinder type eccentric shaft vibrator and eccentric block. Stable vibration source, strong vibration force, large processing capacity.

Live Chat Message

Overview

Circular vibrating screens are widely used and essential in mineral processing operations, construction aggregate sand and gravel production, construction waste, solid waste treatment and coal preparation industries.

The electric motor makes the eccentric block of the vibrator rotate at high speed through the triangle belt. The running eccentric block produces a large centrifugal force, which excites the screening box to produce a certain amplitude of circular motion, and the material on the inclined screen surface is subjected to the impulse of the screening box and is done a continuous throwing motion. When the material meets the sieve surface, the particles smaller than the screening hole pass the screen, thus achieving grading.

Features

  • The structure with small amplitude, high frequency and large inclination angle is adopted, with strong processing capacity and high screening efficiency.

  • Cylinder eccentric shaft vibration exciter and eccentric block are used to adjust amplitude, with stable vibration source, strong exciting force and convenient maintenance.

  • Rubber vibration isolation spring is adopted, with long service life and low noise.

  • The screen crossbeam and box are riveted with high-strength bolts, and the strength is high.

  • The side plate of screen box is made of boiler steel plate with strong impact resistance.

  • The side plate of screen box is made of boiler steel plate with strong impact resistance.

Technical Specifications

ModelFeeding size(mm)Capacity(t/h)Power(kW)Weight(t)Dimension(mm)
2GESY1237≤1005-60113.14570×1900×1210
3GESY1237113.44730×1900×1650
2GESY154811-90155.65750×2180×1195
3GESY1548156.45910×2180×1650
4GESY154818.56.76070×2180×2085
2GESY184815-10018.56.655742×2542×1195
3GESY184818.56.955908×2542×1650
4GESY184818.57.256080×2550×2105
2GESY186025-130227.527140×2630×2309
3GESY1860227.727140×2630×2409
4GESY1860227.987140×2630×2550
2GESY216035-2003010.27157×2980×1680
3GESY21603010.57156×2980×1780
4GESY21603010.87330×2980×2240
2GESY246050-2603010.56989×3280×1320
3GESY24603010.87175×3280×1828
4GESY24603711.17375×3280×2240

Note: Technical specifications may change without notice due to ongoing technological advancements.
