Double-Shaft Bulky Waste Shredder

The GDL series shredder is a dual-shaft shearing shredder designed by GEP Ecotech specifically for bulky waste disposal. It can reduce the size of various household and office furniture, mattresses, electrical appliances waste (WEEE), and other bulky items efficiently and economically, reduce space occupation and disposal costs, improve delivery efficiency, and promote recovery recycling.

Live Chat Message

Overview

Bulky waste is a variety of bulky furniture, garden waste, WEEE, etc. that is collected through specialized removal routes. Bulky waste contains many different and valuable resources which can be recovered and reintroduced into the raw material cycle as well as the generation of high-quality substitute fuel for thermal utilization.

GDL double-shaft shredders are optimized for bulky waste disposal, with large feed sizes, high shredding efficiency and easy reduction of bulky waste from a wide range of materials, and we also have sorting equipment for efficient sorting of the shredded material.

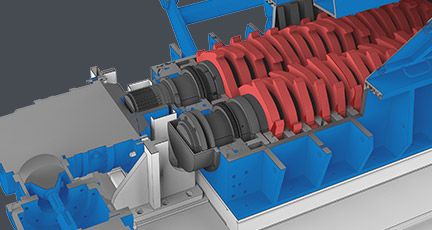

The bulky waste shredder uses double motors + double planetary reducers to drive the two cutter shafts to reduce the size of the material through the shearing, squeezing and tearing action of the blades. The distance between the cutter teeth on the blades determines the length of the shredded material, and the thickness of the blade determines the width of the shredded material.

Features

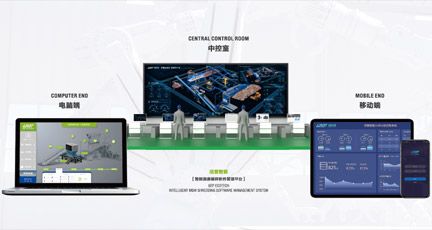

  • GI intelligent system

    GI intelligent system can provide real-time feedback on equipment operation data and automatic alarm stop for failure to avoid accidents.

  • Anti-winding fixed cutter

    Anti-winding fixed cutter design to cope with large pieces of waste flexible textile material disposal, realizing more easily shredding.

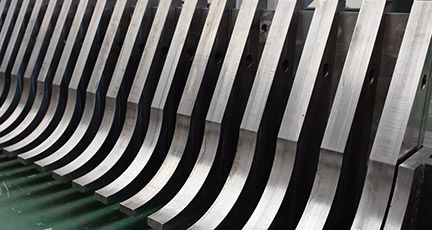

  • main shaft and cutters

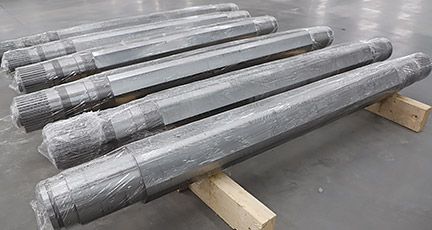

    The main shaft and cutters are made of high-strength alloy steel with multi-step finishing process for long service life.

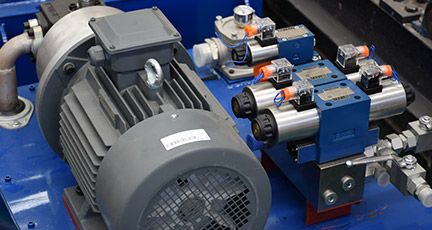

  • Hydraulic auxiliary pressing device

    Hydraulic auxiliary pressing device is tailor-made for large volume of bulky waste, more convenient operation and maintenance, more efficient.

  • Internationally renowned brand bearings + multiple combination seals,

    Internationally renowned brand bearings + multiple combination seals, dustproof, waterproof and dirt-proof, guaranteeing continuous operation.

  • Internationally renowned brand bearings + multiple combination seals, dustproof, waterproof and dirt-proof, guaranteeing continuous operation.

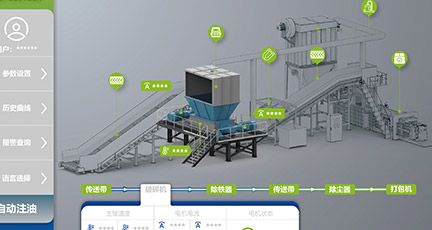

    Intelligent centralized control system with advanced man-machine interface, more time-saving, labor-saving and mind-saving for on-site operation.

Technical Specifications

ModelCapacity (m³/h)Output size (mm)Dimension (mm)
GDL45010-25About 100~3004000×1750×3000
GDL55015-405000×2650×3300
GDL75020-705500×2750×3500
GDL95040-805500×2850×3600
GDL115060-1006000×3150×3800

Note: Technical specifications may change without notice due to ongoing technological advancements.
