Introduction:

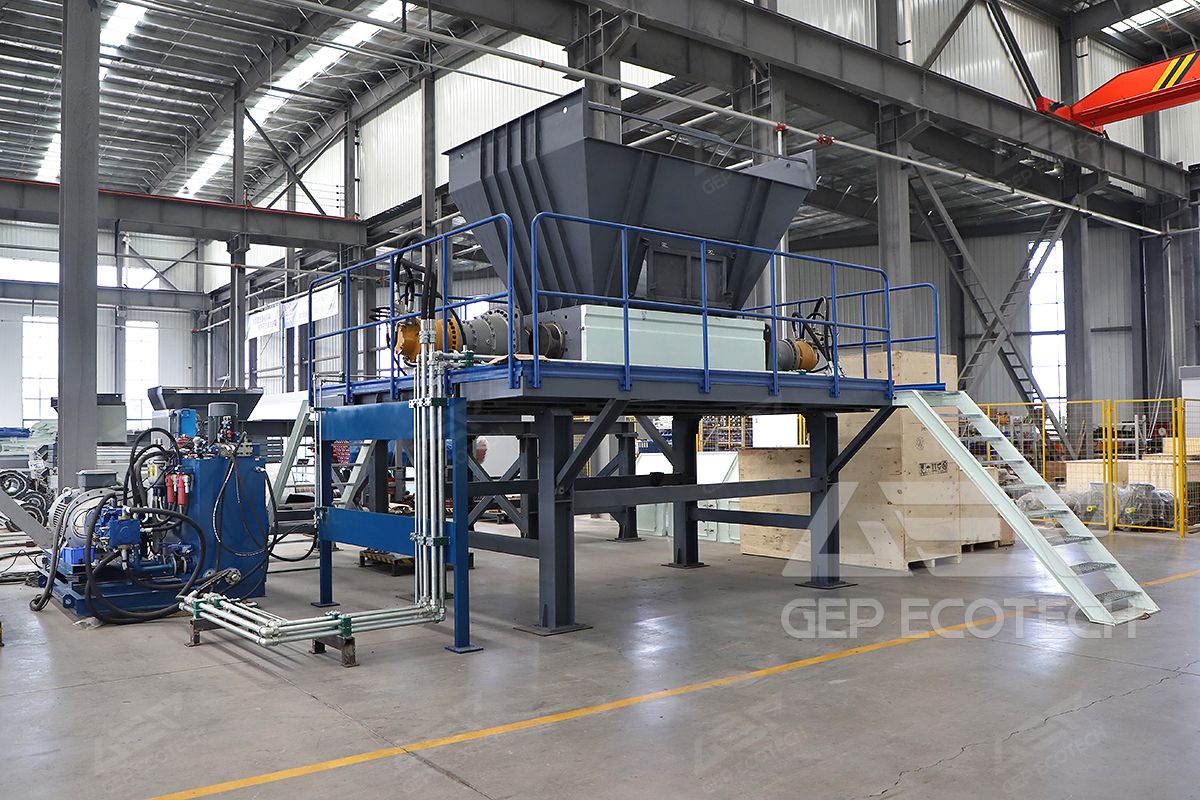

The hydraulic version of the double-shaft shredder adopts dual rotors and dual hydraulic motors for drive. Each rotor is equipped with circular blades with teeth, and the two rotors rotate in opposite directions with different speeds. The material is crushed through the shearing and squeezing between the edges of the blade, as well as the tearing effect between the blade teeth. Its crushing capacity mainly depends on the structure of the shredder (blade diameter, blade overlap size, rotor length, tooth width, number of teeth, etc.) and the characteristics of the driving system (installed power, maximum torque, maximum speed, etc.).
Application:
The hydraulic version of the double-shaft shredder can be applied to:
- Preparation of alternative fuel RDF/SRF
- Crushing treatment of waste wood, waste paper, waste plastics, waste textiles, etc
- Crushing pretreatment of organic waste, kitchen waste, kitchen waste, fruit and vegetable waste, etc
- Crushing of waste household appliances and electronic waste such as refrigerators, washing machines, mobile phones, computers, etc
- Crushing treatment of scrapped vehicles and related components such as discarded tires, car interiors, and car casings
- Security destruction of confidential products/documents such as paper documents, materials and archives, computer hard drives, etc
- Crushing and capacity reduction of large volume waste such as straw, garden waste, and bulky waste
- Crushing of household waste, aged waste, informal landfill waste, and municipal solid waste (MSW)
Advantages:
1.High safety
To avoid overload, once the pressure of the hydraulic system reaches the initial set value (which can be adjusted), the rotor will reverse. After a few seconds of reversing the rotor, the material position in the crushing chamber is readjusted, and then the rotor returns to its initial rotation.
2.Long lifespan
Each cutter shaft is driven by a low-speed, long-life hydraulic motor and a planetary reducer assembly, and the lifespan of a low-speed hydraulic motor is much higher than that of a high-speed hydraulic motor.
3.Sealed well
The crushing chamber is isolated from the bearing box, and all surfaces are precisely machined to ensure good sealing effect; Each bearing guard plate has a lubrication point for lubricating the roller bearings and their sealing system; The shredder is equipped with a quadruple sealing system to protect the bearings from contamination.
4.Low dust
The hydraulic version of the double-shaft shredder has a low rotational speed, so the amount of dust generated during the crushing process and the heat generated by the material are minimized as much as possible.
5.Low noise
The noise level of the hydraulic double-shaft shredder is very low (≤ 80dB), and other noises may be the sound of materials falling into the hopper, colliding, and crushing.
Welcome to GEP for consultation and purchase of the hydraulic version of the double-shaft shredder, to help (wish) your solid waste disposal career to flourish!
