Waste Wood
The GXB Hammer Mill delivers powerful, versatile grinding for agricultural, forestry, and industrial materials, efficiently processing biomass waste, straw, and feed ingredients into uniform, fine particles. Driven by an electric motor, its high-speed rotor with hardened cutters, shreds material through cutting and impact, while a large surrounding screen ensures consistent output size by allowing only properly sized particles to pass through.
Engineered for durability and low maintenance, it features an optimized rotor for higher inertia and efficiency, plus integrated cutter blocks for greater impact force and tough contaminant handling. Extensive screen area maximizes throughput; Advanced bearing and lubrication systems ensure reliable operation, and full-open door access simplifies servicing. Available in multiple configurations, the GXB Hammer Mill excels as a stand-alone unit or complete production line core. Contact us today to explore your optimal solution and enhance your operation’s productivity and profitability.
Its enlarged diameter increases kinetic energy for higher productivity while reducing bearing wear and extending lifespan.

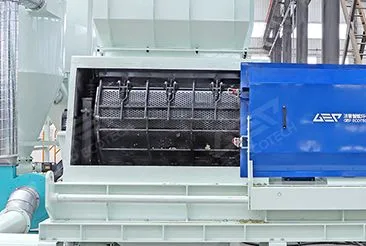

Allowing quick and easy access for screen changes and rotor maintenance, significantly reducing downtime.

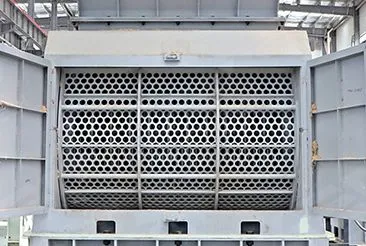

Covering 2/3 of the rotor to maximize output, with a tunable gap that maintains consistent particle size over time.

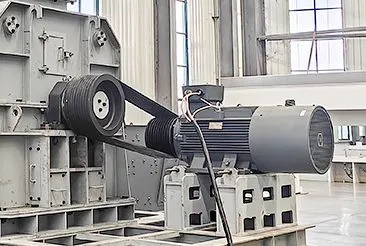

Belt or coupling drive effectively isolates motor vibration, ensuring motor protection and smooth operation.
Model | Host Overall Dimensions（mm） | Discharge Size（mm） | Capacity（t/h） | Installed Power（kW） | Transmission Mode | Main Unit Weight（kg） |
GXB10 | 3500×1800×2000 | <50 mm (≥95%) | 3.5–7 | 110–132 | Belt drive or coupling direct connection | 6800 |
GXB15 | 4100×1800×2000 | 8–12 | 160–200 | 8500 | ||
GXB20 | 4990×1960×2190 | 10–20 | 200–355 | 11950 |
Note: Technical specifications may change without notice due to ongoing technological advancements.
