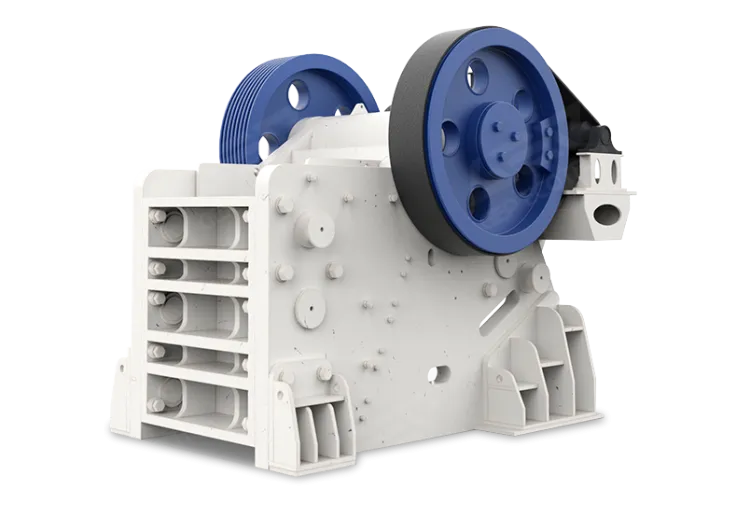

Jaw Crusher

Jaw Crusher

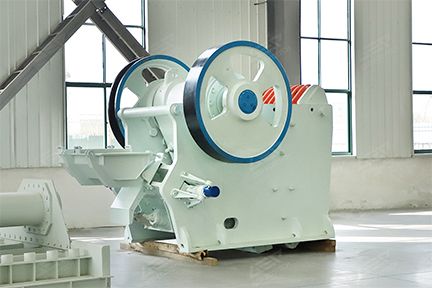

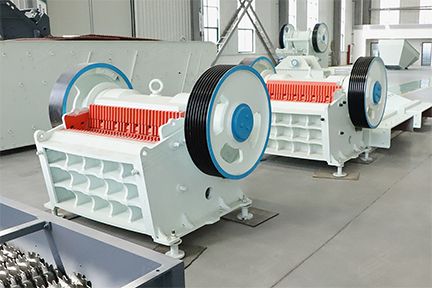

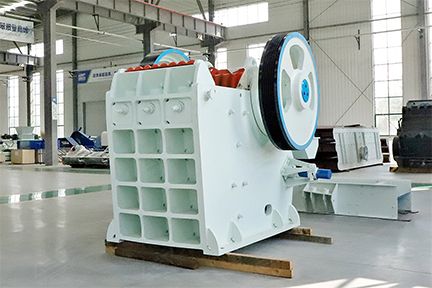

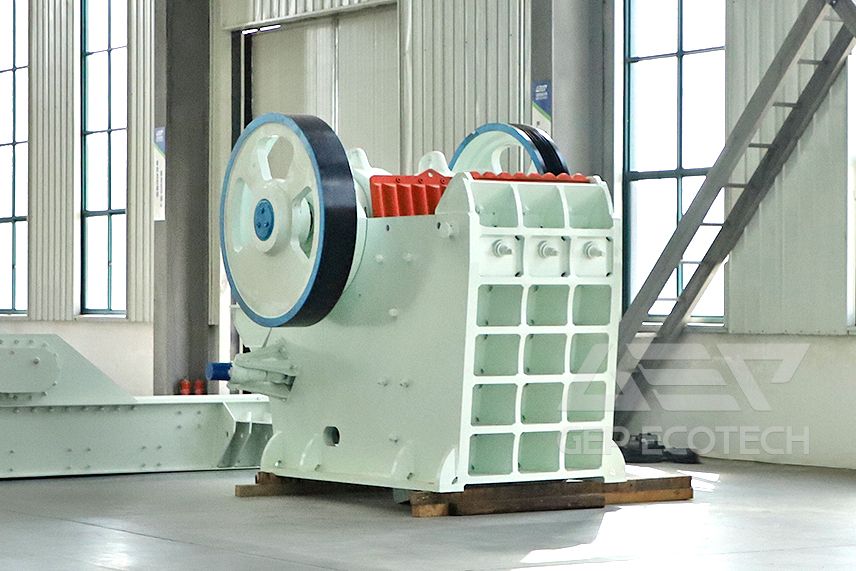

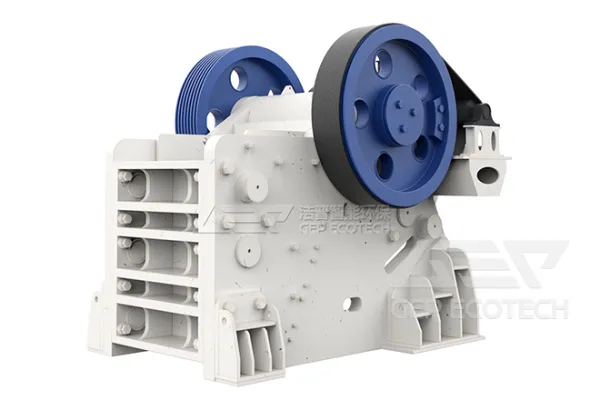

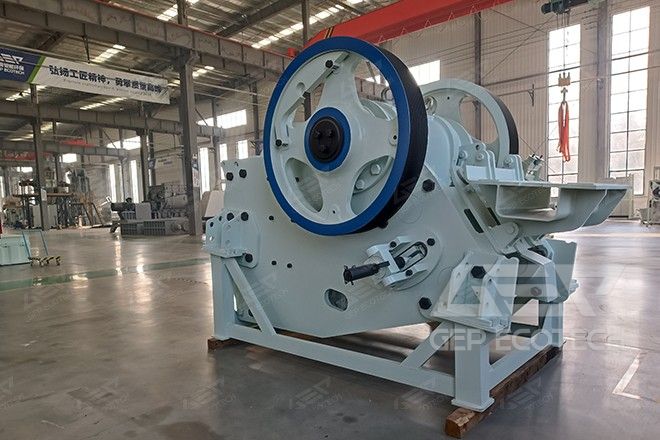

The jaw crusher reduces the size of stones and ores by squeezing, which is able to accept large size raw materials and is usually used for primary crushing. Typical features of a jaw crusher are its two large flywheels and the V-shaped jaws in the crushing chamber. During operation, the material enters the crushing chamber from above and the eccentric shaft on the flywheel drives the jaws in a human-like chewing motion to crush the material.

Live Chat Message

Overview

Jaw crushers are a very well established class of equipment that have been in use for over 150 years since they were first invented and are widely used in quarrying and mining plants to produce construction aggregates or to crush ores.

The jaw crusher reduces the size of stones and ores by squeezing, it is able to accept large size raw materials and is usually used for primary crushing. Typical features of a jaw crusher are its two large flywheels and the V-shaped jaws in the crushing chamber. During operation, the material enters the crushing chamber from above and the eccentric shaft on the flywheel drives the jaws in a human-like chewing motion to crush the material.

GEP Ecotech's jaw crushers have the capacity to handle a wide range of hard materials, making it easy to handle construction and demolition waste, and we also offer mobile jaw crushers mounted on tracks or frames with tyres to meet the requirement to be mobile when crushing.


Features

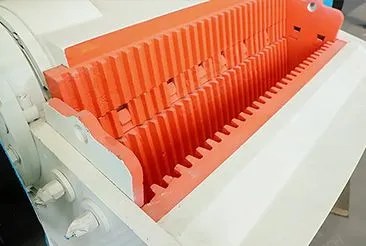

  • Symmetrical

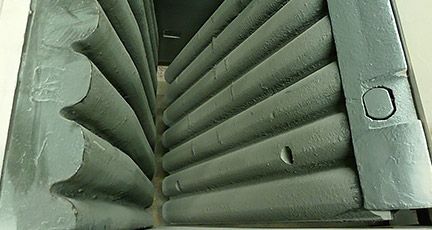

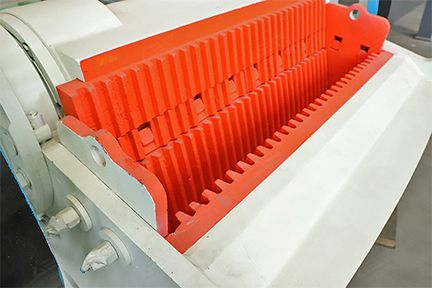

    Symmetrical "V" shaped chamber design, larger feed size, higher output and lower jaw wear rate.

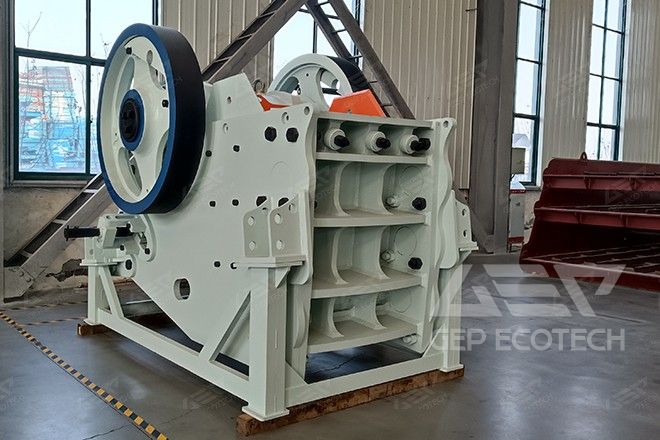

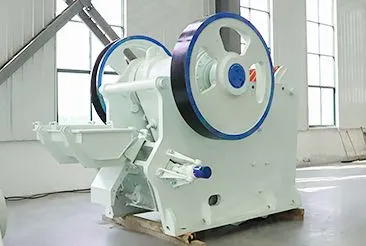

  • Assembled weldless frame

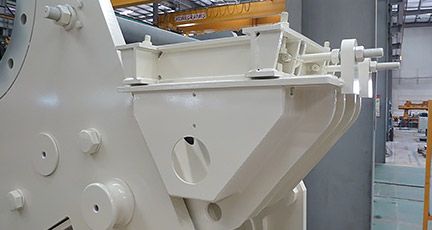

    Assembled weldless frame structure design, high reliability, more convenient transportation and installation.

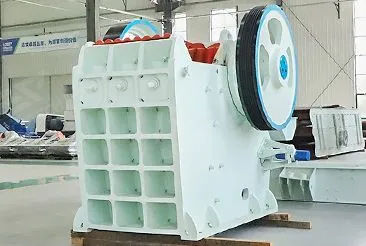

  • Large curvature transition rounding

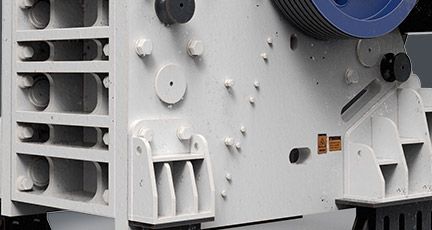

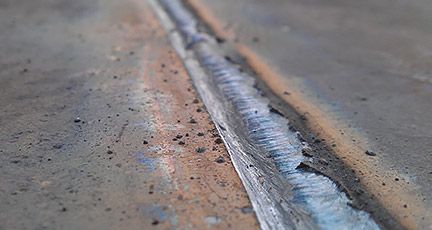

    Large curvature transition rounding, low stress welding method, impact resistance, uniform force, low failure rate.

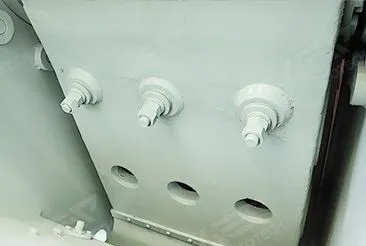

  • Forged from high-end materials

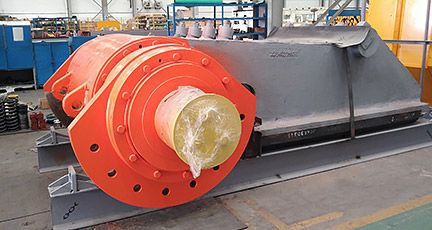

    The movable jaw assembly and heavy-duty eccentric shaft are forged from high-end materials for high stability.

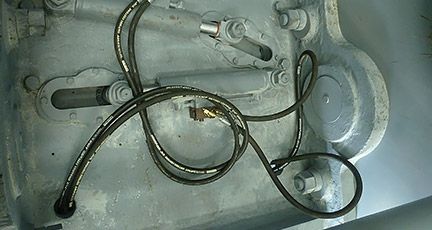

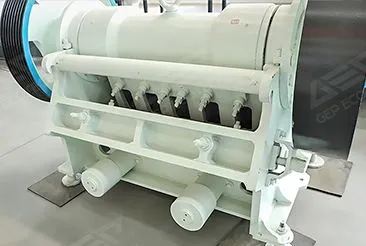

  • Centralized lubrication system

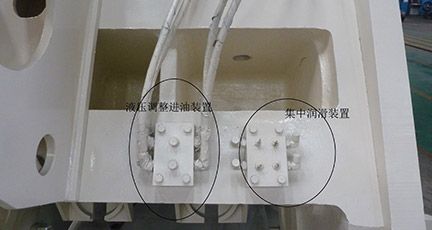

    The centralized lubrication system reduces the difficulty of maintenance; the labyrinth seal ensures that the lubricating grease inside the bearing is clean and prolongs the service life of the bearing.

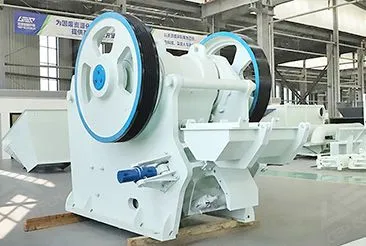

  • Double wedges or hydraulic adjustment device

    The discharge opening adopts double wedges or hydraulic adjustment device and centralized lubrication device, which is convenient for maintenance.

  • Integrated motor installation

    Integrated motor installation, integral cast steel structure bearing seat, high strength of equipment, compact structure.

Technical Specifications

ModelFeeding port size (mm)Maximum feeding particle size (mm)Discharging port adjustment range (mm)Capacity (t/h)Power (kW)Weight (t)
GEC2512250x12022020-4020-5037-458
GEC5180510x80042540-15050-25055-758.9
GEC6310630x100058080-180100-23075-9020.5
GEC8511850x110068090-215160-570110-13233.7
GEC9512950x1250800100-250260-810132-16049.3
GEC12151200x1500960150-350400-1000200-25090.3

Note: Technical specifications may change without notice due to ongoing technological advancements.
