Pre-Shredder

Pre-Shredder

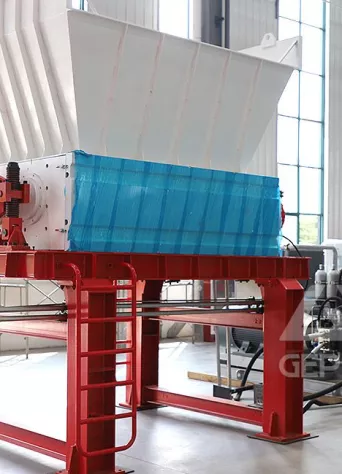

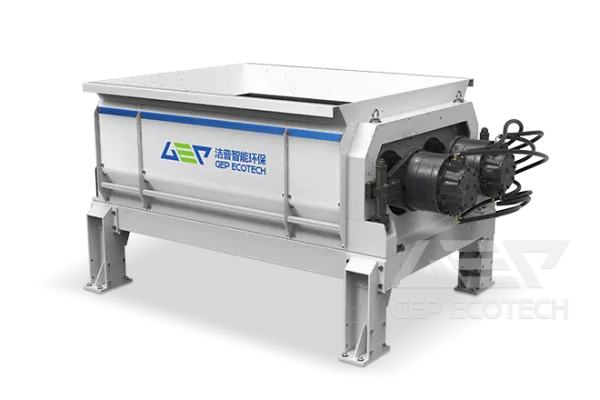

GC series pre-shredder is a high-torque waste pretreatment equipment, used in the first stage of the waste treatment process, suitable for pre-shredding municipal solid waste (MSW), bulky waste, C&D waste, etc. The shredder uses the principle of shearing and tearing to realize shredding, which can shred extremely coarse materials forcefully and prevent the accumulation of raw materials.

Live Chat Message

Overview

Large-scale waste treatment applications face many challenges. For example, the large-scale processing requirements put huge pressure on subsequent treatment equipment, and the wide range of changes in electrical load caused by different types and sizes of waste, etc., which will cause huge uncertainties to the entire system. The addition of a pre-shredder to the disposal system helps to reduce and disassemble the material before it is sent to the main shredder, reducing risks and at the same time homogenizing the feed. Pre-shredders are widely used in projects such as car shell shredding and large-scale obsolete waste disposal.

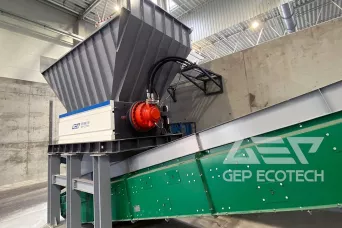

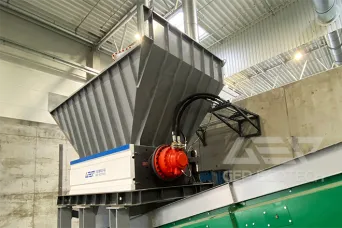

The pre-shredder is installed in front of the main shredder to help reduce and break up the material before it is fed into the main shredder. This helps to extend the life of the main shredder cutters and prevents non-shreddable and flammable materials from entering, while reducing peak power loads and keeping the line running smoothly. The pre-shredder also homogenises the feed and helps to control the feed rate to the main shredder, thereby increasing throughput and reducing unit processing costs.

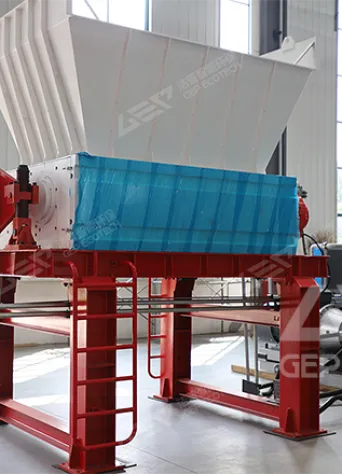

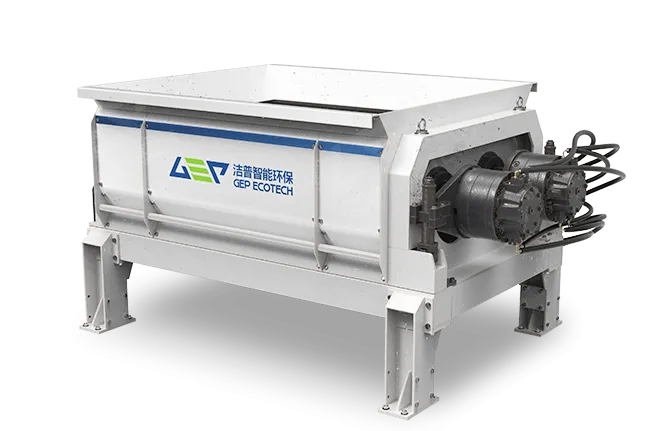

The GC pre-shredder uses a low speed, high torque double hydraulic motor to drive the cutter rolls directly. It uses the interaction between the cutters and the middle comb plate to shear, tear and pull the material, and is mostly used as the first step in the shredding process of various solid wastes.

Features

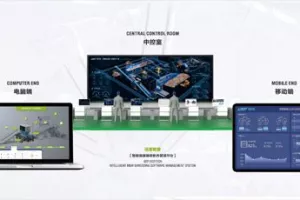

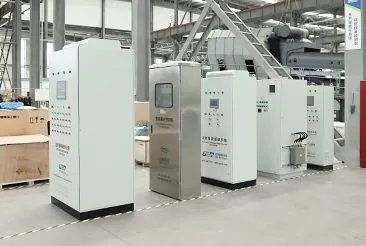

  • Intelligent monitoring system

    Intelligent monitoring system can realize intelligent data analysis, visualization of production process, timely abnormal alarm and safety intelligence.

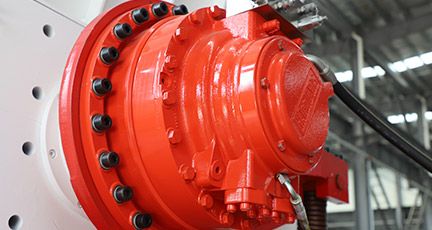

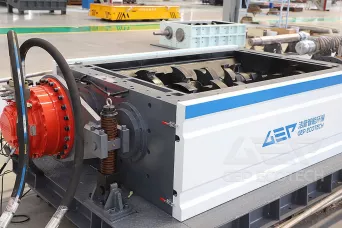

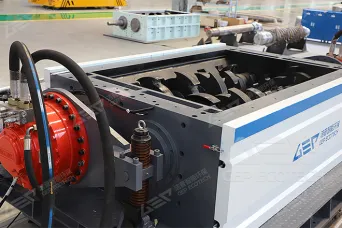

  • Hydraulic motor

    The hydraulic motor is directly driven by a low-speed, high-torque hydraulic motor, which is directly connected to the cutter shaft of the shredder, with high transmission efficiency.

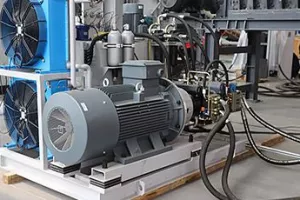

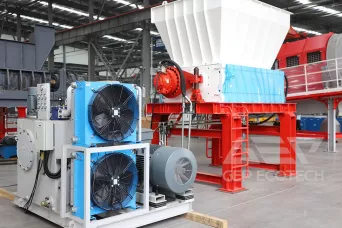

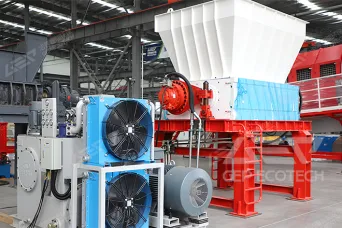

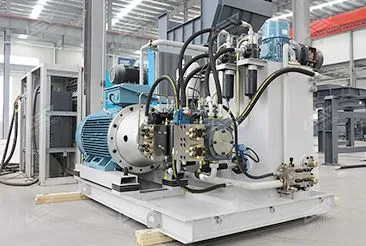

  • Hydraulic system

    The hydraulic system is equipped with high quality hydraulic pumps and valves, with strong power output, ensuring efficient and stable operation of the hydraulic system.

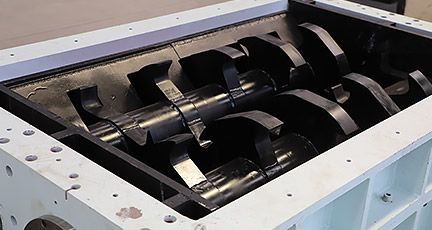

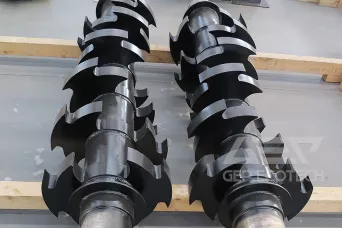

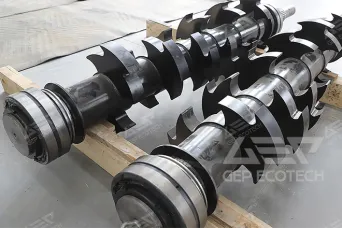

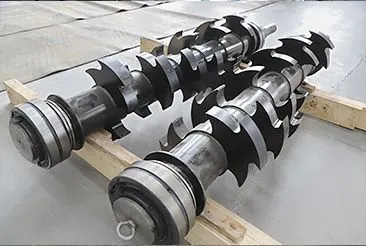

  • Special cutter

    Special cutter design and surface hardening treatment, strong and durable; can be welded after wear and tear, reducing maintenance costs.

Technical Specifications

ModelCapacity (t/h)Output size (mm)Dimension (mm)
GC1210-30100-4003500×1900×3100
GC1620-403800×2200×3200
GC1840-604800×2400×3300

Note: Technical specifications may change without notice due to ongoing technological advancements.
