Through the design of innovative technologies to deal with municipal solid waste, develop customized MSW solutions, obtain new value from waste through MSW sorting plant, turn waste into resources, and give new life to waste. This is the mission we have been pursuing for many years.
During these years of activities, GEP Smart Environmental has never stopped researching and developing, achieved multiple goals and developed innovative solutions capable of dealing with various types of municipal solid waste. Our MSW sorting plan has been put into operation in many projects one after another, and has been recognized by domestic and foreign enterprises.
Due to special characteristics such as mixed materials, municipal solid waste needs special treatment. GEP has developed two sorting plants dedicated to municipal solid waste. A series of machines can minimize the steps in material processing and ensure the output. Let's take a look at these two acclaimed MSW sorting lines for sale.

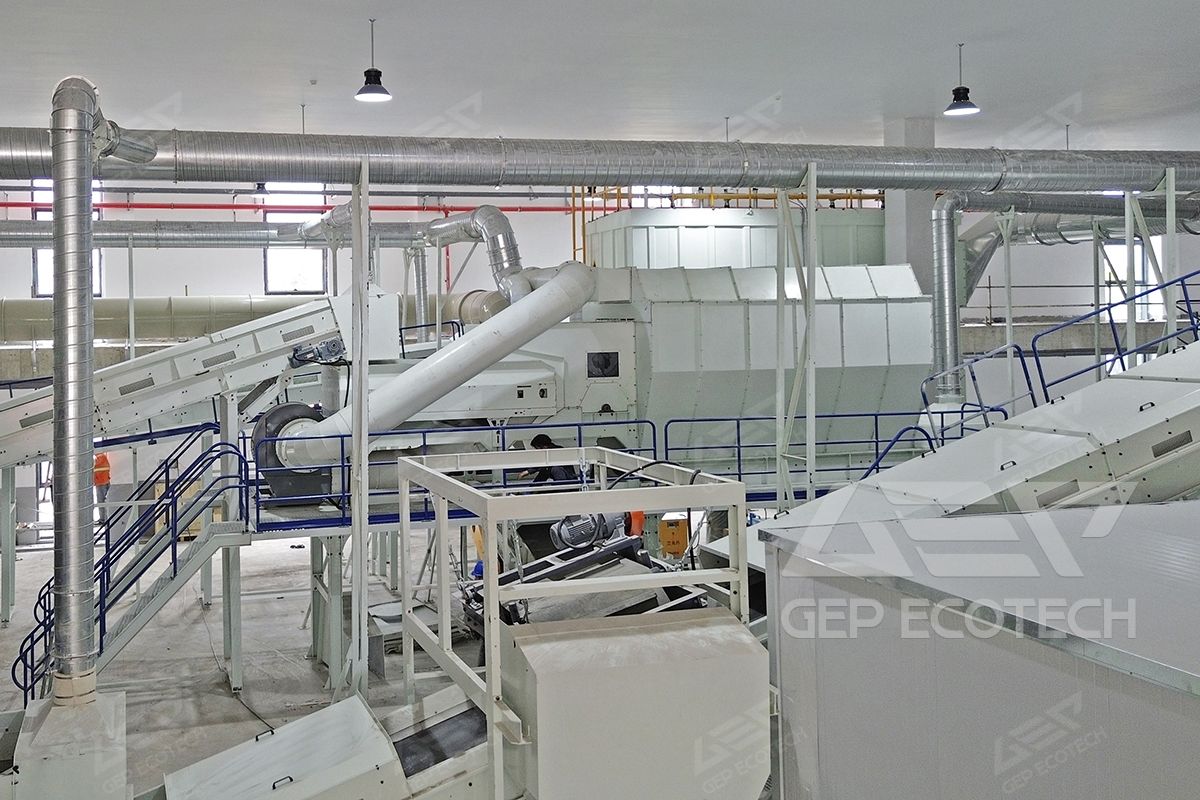

Raw MSW sorting plant
The raw municipal solid waste is conveyed to the pre-shredder by the conveyor for coarse crushing, and the crushed material enters the trommel screen for screening, and the oversized material > 40mm is separated by magnetic separator and air separator to obtin metals, heavy materials and light materials, among which the light materials are sent to the fine shredder for fine shredding to obtain a size suitable for recycling. The undersize < 40mm screened out by the trommel screen and the heavy material sorted out by the winnowing machine are sent back to the landfill.
Raw MSW sorting plant

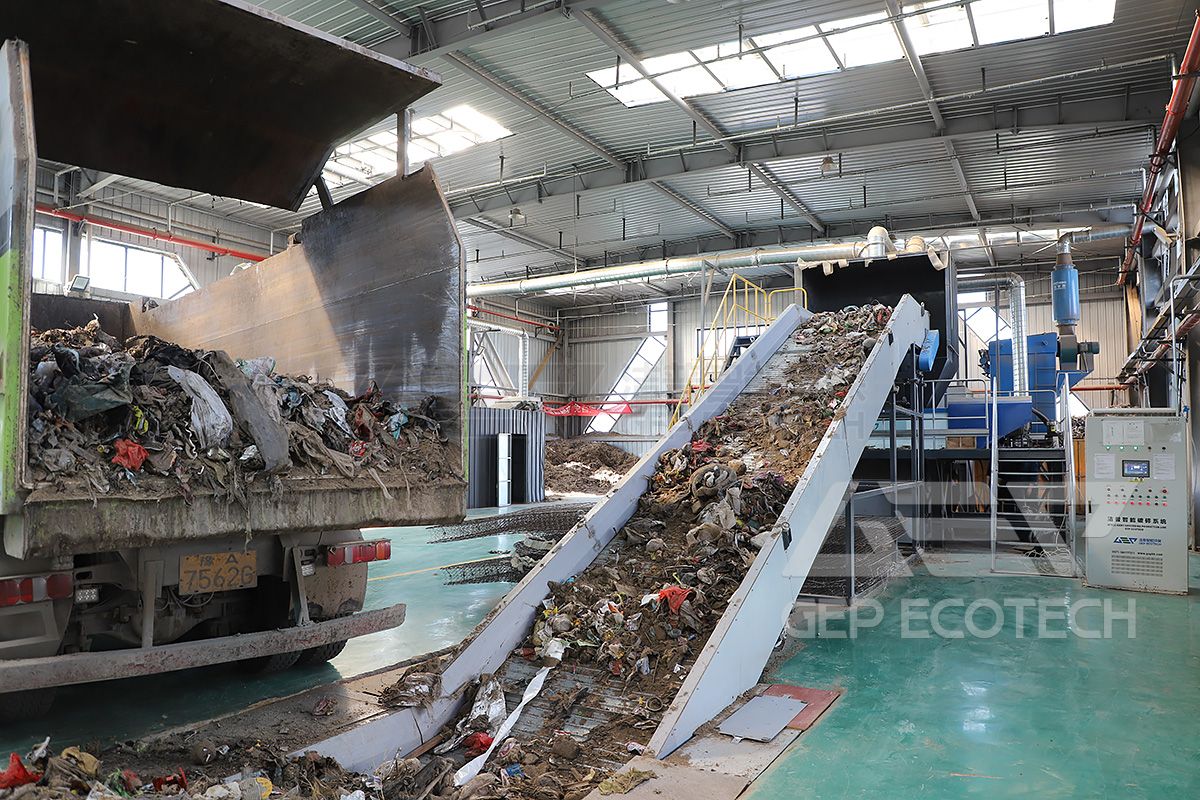

Landfill MSW sorting plant
The Landfill municipal solid waste is transported to the trommel screen for screening, and the oversize > 40mm is sent to the pre-shredder, winnowing machine and fine shredder for crushing, sorting and fine crushing in sequence, and the obtained light combustibles are compressed to make into alternative fuels; the metals selected by the magnetic separator are recycled; the heavy inerts such as building materials separated by the winnowing system can be used for roadbed materials and recycled building materials; the sieve under 40mm is used as landfill soil, humus soil, etc.
Landfill MSW sorting plant

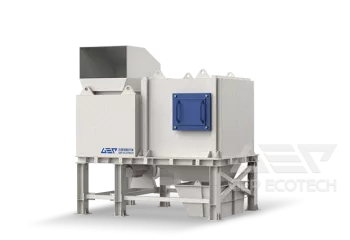

In addition to the design of the entire municipal waste MSW sorting line, GEP ECOTECH can also provide stand-alone machines according to customer processing needs. For example, our MSW shredder, wind sifter, rotary drum screen are specially designed to handle different types of MSW sorting lines, and can even effectively handle high density garbage. If you want to know more about MSW sorting line, don't hesitate to contact us!
