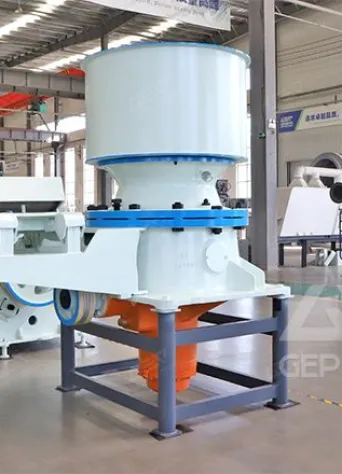

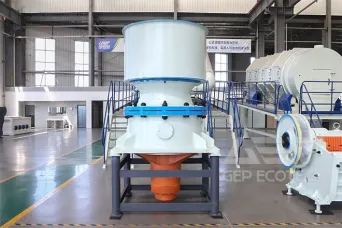

Cone Crusher

Cone Crusher

The cone crusher integrates mechanical, hydraulic, electrical, automatic and intelligent control, and adopts the principle of layer compression crushing, which is able to crush hard materials such as masonry and stone in construction and decoration waste to a small size, and the finished product is of high quality, with a cubic shape and high content of fine particles, which can meet the requirements of high-quality aggregates.

Live Chat Message

Overview

The hydraulic cone crusher is often used for stone and construction waste crushing, metal ore/non-metal ore crushing.

The motor drives the transmission shaft through the belt pulley and v-belt, and the transmission shaft drives the eccentric sleeve around the main shaft through the large and small bevel gears, and the eccentric sleeve drives the dynamic cone to make a swinging motion, so that the dynamic cone and the fixed cone are sometimes close to and sometimes far away from the concave, and the material is constantly crushed by extrusion and impact in the crushing chamber formed by the mantle and the concave, and the crushed material is discharged from the lower part.

Technical Specifications

ModelCavity typeFeeding port size (mm)Minimum discharge opening (mm)Capacity (t/h)Power (kW)Weight (t)
GEY160C15013120-24016013
F76655-180
GEY220C22513150-43022018
F86690-260
GEY315C29013190-61031526
F1006108-320
GEY400C32013230-70040033
F1206140-370

Note: Technical specifications may change without notice due to ongoing technological advancements.
